PEL103 POWER-ENERGY LOGGER
Description
Product Description

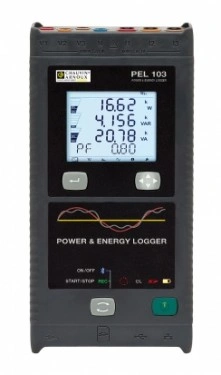

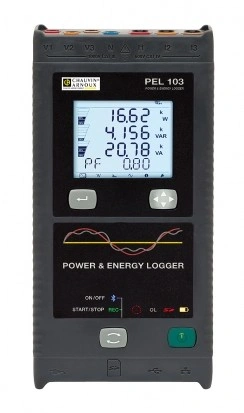

The PEL 103 is a low cost, simple to use, one, two (split phase) and three phase power/energy data logger. This product is ideal for electricians, engineers and contractors doing work in the area of building and system monitoring and upgrades, as well as residential and overall energy audits. All vital energy data is easily measured, recorded, and analyzed. Reports can be generated with confidence with minimal configuration time and effort (Standard and Customizable Reports supplied).
The instrument’s design enables it to be installed inside a load center panel (including the current sensors) allowing the door to close on most panels. The PEL 100 series offers all the essential functions for logging power/energy data from most electrical power networks in use today across the world (17 network set-ups provided). The PEL 100 series energy loggers measure and record three True RMS voltage inputs and current inputs, Watts, VARS, VA and Energy (kWh and kVA). Power Factor (PF), Displacement Power Factor (DPF), Crest Factor, Frequency and THD are calculated and recorded as well. Individual harmonic % information from 1 to the 50th harmonic are recorded at the operator’s choice. All variables are recorded and stored at a one second interval and on user selectable demand intervals from 1 to 60 minutes.
The PEL 103 comes either with or without sensors, see model options and descriptions below.
Ergonomic, magnetized and suitable for all types of cabinets, PEL103 loggers provide all the power and energy measurements simultaneously.
- Single-phase, split-phase and three-phase installations with or without a neutral, as well as other complex configurations.
- Implementation without cutting off the mains power supply
- BlueTooth, Ethernet and USB communication
- Automatic recognition of the sensors connected
- Recording on SD and SD-HC cards
- Real-time communication with a PC and analysis using PEL Transfer software
Other specifications:
- Voltage up to 1,000 V
- Current up to 10,000 A
- Voltage ratio / current ratio up to 650,000 V / up to 25,000 A
- Power from 10 W/var/VA to 10 GW/Gvar/GVA
- Energy up to 4EWh / 4 EVAh / 4 Evarh
- Phase: cos φ, tan Φ, PF
- Harmonics up to 50th order
- 2 GB SD memory card (SD-HC card up to 32 GB)
Specifications
| Inputs | 3 Voltage / 3 Current: calculation of neutral current | ||||
| Sample Rate | 128 per Cycle | 6.4kHz at 50Hz | 7.68kHz at 60Hz | ||
| Specification | Range | Measurement Range | Resolution | Accuracy (Typical) | |
| Volt | |||||
| Vrms | 1000V P to N | 10 to 1000V | 0.1V | ±0.2% Rdg + 0.2V | |
| Urms | 1000V P to P | 17 to 1700V | 0.1V | ±0.2% Rdg + 0.4V | |
| Amps @ 50 and 60Hz | |||||
| Amps (1V nominal) (excluding clamp accuracy |
Probe dependent | 0.2%< I < 120% Inom | Probe dependent | ±0.2% Rdg + 0.02% Inom | |
| AmpFLEX & MiniFlex (including sensor accuracy) |
Range 100A Range 400A Range 2kA Range 10kA |
200mA to 120A 5 to 440A 50 to 2400A 400A to 12kA |
1mA 0.1A 0.1A & 1A 1A |
±1.2% Rdg + 50mA ±1.2% Rdg + 0.2A ±1.2% Rdg + 1A ±1.2% Rdg + 5A |
|
| Frequency | 42.5 to 69Hz | 0.01Hz | ±0.1Hz | ||
| Power | |||||
| Watts (VA, var) P-Q-S | 10W to 10GW / 10var to 10Gvar / 10VA to 10GVA | 4 digits min | ±0.5% Rdg + 0.005% Pnom | ||
| Power Factor (Cos Φ/DPF) | -1 to 1 | 0.001 | ±0.05 | ||
| Energy | |||||
| kWh (kVAh, kvarh) P-Q-S | Up to 4EWh / 4Evarh / 4 EVAh (E = 1018 ) | ±0.5% Rdg | |||
| Harmonics | DC, 1 to 50 | ||||
| Volts & Amp % | 0.01 to 655.0% | 0.01% | ±1% Rdg from 1 to 25 | ||
| THD | 0.00 to 655.0% | 0.01% | ±1% Rdg | ||
| General Features | |||||
| Case | Design Rugged, shock proof with integrated protective holster, IP54 not included terminals. Shock and vibration IEC61010 | ||||
| Interface | Isolated USB, Bluetooth, and Ethernet, SD card for direct transfer to PC. Dataview software for real time data, configuration and reporting included | ||||
| Memory | 8GB SD card (SDHC compliant, FAT32 formatted) 32GB max | ||||
| Display | LCD with backlight | ||||
| Real-Time Clock | Time and date stamp for Trend mode | ||||
| Power | AC 110V/230V 50/60Hz 15VA; Battery backup when power OFF, 60 minutes typical | ||||
| Dimensions (L x W x H) | 10.08 x 4.92 x 1.46” (256 x 125 x 37mm) | ||||
| Weight | 2.2lbs (1kg) | ||||
| Altitude Operating | 2000m (6560ft) | ||||
| Operating Temperature | 32 to 108.5°F; (0°C to +42.5°C) from 10 to 85% RH | ||||
| Storage Temperature | -4 to 122°F; (-20°C to +50°C) from 0 to 75% RH with battery pack | ||||
| Electro-Magnetic-Compatibility (EMC) | EN 61326-1 for emission and immunity | ||||
| IP Rating | IP54 per IEC 60529 | ||||
| Safety | IEC/EN 61010-1 (1000V CAT III-600V CAT IV), IEC 1326-1  |
||||
