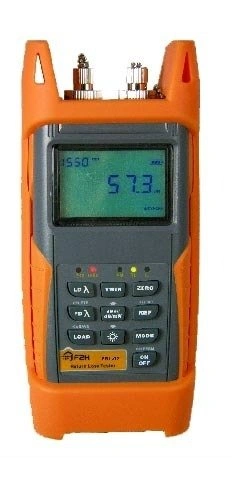

Grandway FRL-02 Optical insertion Loss/Return Loss Meter
Product Description:
The F2H optical insertion loss/return loss meter is an integrated tester for optic fiber network, and cable manufacturer to verify the quality of fiber leads, with the features of handheld, intelligent and multi-functional.
The meter is designed to be a combination of optical insertion loss tester, optical power meter, laser source and return loss tester. It is capable to not only measure return loss and proceeding the measurement of absolute and and relative power value, but also work as a self-testing system to measure optical loss of optic fiber cable and passive device. FRL is an ideal tool to verify the polish quality of fiber, measure optical return loss in field installation, proceed routine inspection. It is no doubt to be an excellent instrument for Optic Telecom and CATV network, as well aslab test and research work.
Features:
• High-precision ORL testing at 2 wavelengths (SM 1310/1550nm)
• Three instruments in one: return loss meter/power meter/insertion loss meter
• Internal data storage up to 500 records.
• Both batteries or AC power supply
• Interchangeable connectors with FC/SC/ST
Specifications:
|
Return loss meter |
|
|
Working wavelength |
1310nm, 1550nm |
|
Measurement range |
0~65dB |
|
Calibrated wavelengths |
1310nm&1550nm |
|
Measurement accuracy |
0~55dB:0.4dB; 55~65dB: 1dB |
|
Stability |
0.05dB/15min |
|
Connector type |
FC/APC, SC/APC, ST/APC |
|
Resolution |
0.1dB |
|
Data memory |
1000 measurement results |
|
Power Output |
-2dBm |
|
Insert loss meter |
|
|
Calibrated wavelengths |
1310nm, 1550nm |
|
Measurement range |
0~70dB |
|
Measurement accuracy |
0~60dB:0.2dB; 60~70dB:1dB |
|
Data memory |
500 measurement results |
|
Connector type |
FC/SC/ST |
|
Power meter |
|
|
Calibrated wavelengths |
850nm, 1300nm, 1310nm, 1490nm, 1550nm, 625nm |
|
Measurement range |
-70dBm ~7dBm |
|
Measurement accuracy |
-70dBm ~-60dBm:1dB; -60dBm~7dBm±0..2dB~1nw |
|
Modulation detection |
270HZ, 1KHZ, 2KHZ |
|
Auto-lambda detection |
yes |
|
Resolution |
70~60dBm:0.1dB; -60~+8dBm:0.01dB |
|
Data storage |
500 measurement results |
|
Connector type |
FC/SC/ST |
|
Other specifications |
|
|
adapter |
INPUT:AC100~240V 50/60HZ OUTPUT: DC6V/1A |
|
USB connector |
Yes |
|
Battery |
2*AA NI-MH 1.2V 2500mAh rechargeable |
|
Working temperature |
-5~+50°C |
|
Storage temperature |
-20~+70°C |
|
Working humidity |
0~90% no condensing |
|
Support remote upgrade |
|
