FiberView FV-3100

FiberView FV-3100

Price on request
Phone orders - 011 805 5030 / Whatsapp: 0843797031011 805 5030 / Whatsapp: 0843797031, Monday-Friday, 08:00-17:00
Product code - SKU: FiberView FV-3100

Description

Product Description

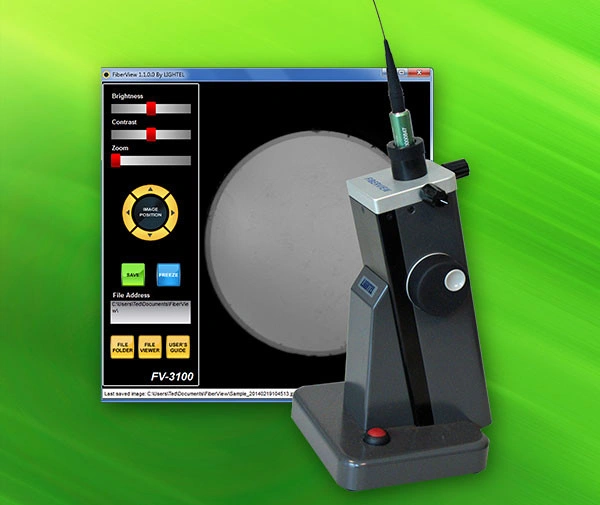

The FV-3100 (FiberView) is Lightel's benchtop digital microscope designed for inspecting and capturing images of large core fiber. The large 1400µm x 1000µm Field of View enables inspection of fibers as large as 1mm, with digital zoom available for additional detail. FiberView can also be useful for 125µm fiber when it is important to see a larger area of the connector.

Powered by the USB port of a PC, FiberView's intuitive design is simple and convenient to use. The included software can be mastered in minutes.

  • Easy to focus and center
  • Direct USB2.0 to PC connection
  • Powered by USB
  • Zoom up to 3x
  • Free image capture and viewing software
  • Include notes with image captures
FiberView (FV-3100)
Field of View ~ 1400µm x 1000µm
Resolution 0.5µm detectable
Focus Manual adjustment range ±2mm
Axis Adjustment Manual X & Y adjustment range ±1mm
Light source Blue LED
Power supply PC USB2.0 port
Dimensions H 210mm (with tip), W 120mm, D 123mm
Weight 915g
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 70°C
System Requirements Windows XP, Vista, Windows 7, Windows 8
(FiberView software) 32 and 64-bit systems supported

Download specifications here : Click Here
