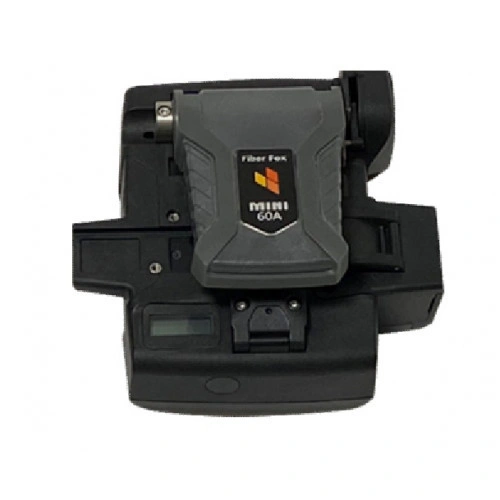

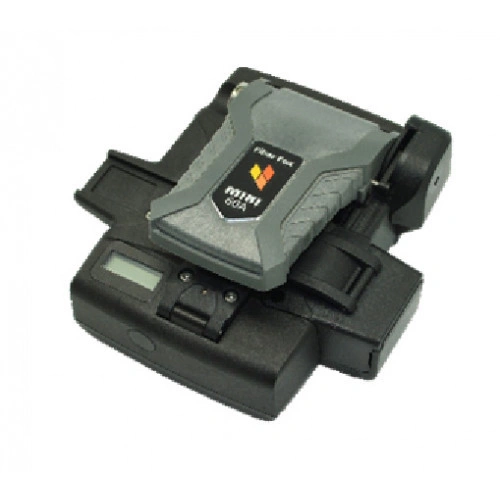

FiberFox MINI 60A One Click Cleaver

• Single & ribbon fiber cleaver

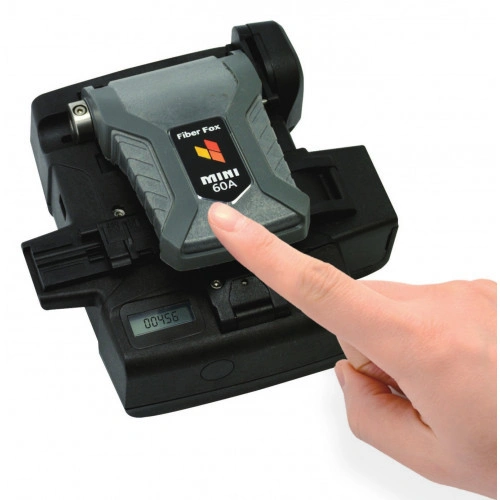

• One click cleaving
• 265g / 105'108'56mm(with Auto chip collector), 105'90'56mm(with trash bin)
• 80"125um
• Single Fiber:10-20mm / Ribbon fiber: 10mm
• Single Fiber: 250um, 900um, 3.0mm fiber cable and indoor cable / Ribbon fiber: 2 to 12 ribbon fiber cable
• Single Fiber: 0.3°-0.9° (Ave.0.5°) / Ribbon Fiber: 0.3°-1.2° (Ave.0.5°)

​

Operation Method: One Click Cleaving

Applicable Fiber:

Single fiber (250μm, 900μm, 2~3ф, indoor cable)

Ribbon fiber (1~12ch fiber)

Coating Diameter: Max. 3mm

Cleave Length:

Single fiber: 10~20mm

Ribbon fiber: 10mm

Cleave Angle: Single Fiber：0.3°~ 0.9° (Ave.0.5°)

Ribbon Fiber：0.3°~ 1.2°

Blade Life Span: 60,000 times

Size: 105x108x56mm(with Auto chip collector)

Weight: 260g

Operation Condition: Temperature：-10~50℃

Humidity：0~95%RH

Storage Condition: Temperature：-40~80℃

Humidity：0~95%RH

Blade Rotation: O (Manual)

Cleaving Counter: O

Auto Chip collector: O

Built-in Tool kit: O
