Rigol DS4024 200 MHz bandwidth 4 channel 4 GSa/s

Description

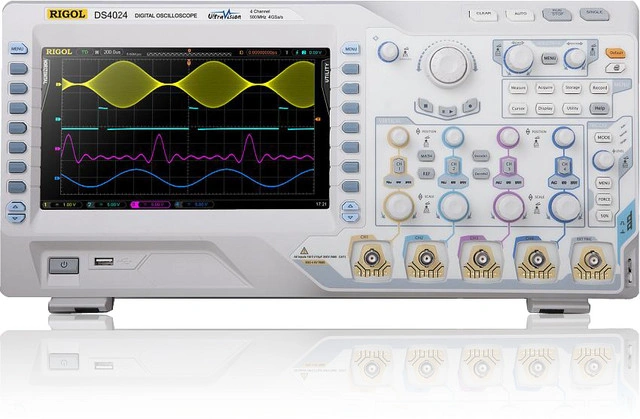

Rigol DS4024 200 MHz bandwidth 4 channel 4 GSa/s

Quick Overview:

• 200 MHz bandwidth

• 4 GSa/s sample rate

• 4 Analog channels available

• 140 million memory points, standard

• 110,000 Waveforms per second

• Original Ultravision technology

• Hardware allows for real-time, continuous waveform recording and waveform analysis

Product Description:

The Rigol DS4024 is a very high quality four channel digital storage oscilloscope. It offers up to 4 GSa/s real-time sample rate and up to 200 MHz bandwidth.

These high performances ensure not only to capture real-time instantaneous signal, but also to observe details of repeated signal. DS4024 have up to 110.000 wfms/s refresh rate, which enable users to capture instantaneous signal and abnormal signal more quickly, to enhance waveform capturing ability, and to expedite circuit debug course. The quality of the Rigol Oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.

Other advantages: 9" color LCD, bright and vivid waveform display; versatile trigger modes: i.e. slope, alternative, rise&fall edge, enable users to stabilize signal more easily. In economical oscilloscope field, DS4024 have no doubt the highest performances, the most functions thus should be engineers’ best choice.

Special Features:

 Innovative wider display:

It is possible to observe up to 14 divisions on the innovative extra wide 9" display with a resolution of 800x480 pixels. Using the "Waveform Finder" it is easy to find a specific part of the recorded waveform.

 Ultra Vision:

Due to the very high capture rate and the huge memory it is possible to capture up to 110.000 waveforms per second. It is possible to store up to 140.000.000 single measurement points. With Ultra Vision you can zoom into a selected part of the captured waveforms to get more details.

 Advanced Math:

The DS4000 series oscilloscopes comes with a modern and advanced math system which allows to solve complicated signal calculations quite simply using user defined formulas.

 Auto measurements with statistics:

The oscilloscope measures up to five parameters like rise- and fall-time, amplitude, pulse width, duty cycle and many more simultaneously and shows statistics for every parameter (max- , min- and average values).

 Serial Bus Decoding:

Serial data packages of different serial bus systems can be decoded.
supported protocols are: Parallel (standard), RS232/UART (option), I²C (option), CAN (option) and FlexRay (option)
The optional decoding modules can be bought separately, see accessories tab on this site.

 Masked Pass/Fail-Tests:

Pass/fail testing can be used for troubleshooting in various environments like communication networks.
Features: User defined masks, Pass/Fail counts, Stop on Fail, Fail Alarm.
