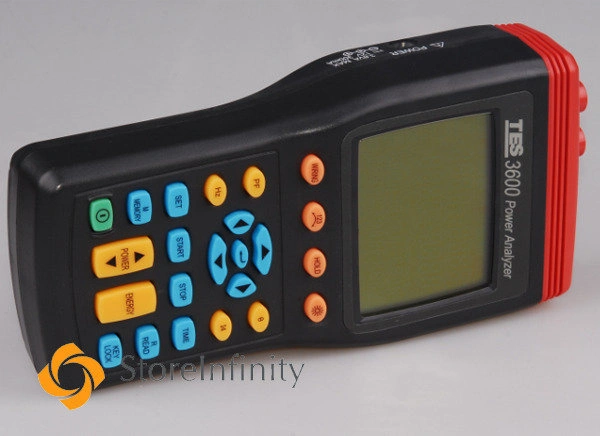

Description
Features:
· 10 Display Easy - to - View LCD Screen

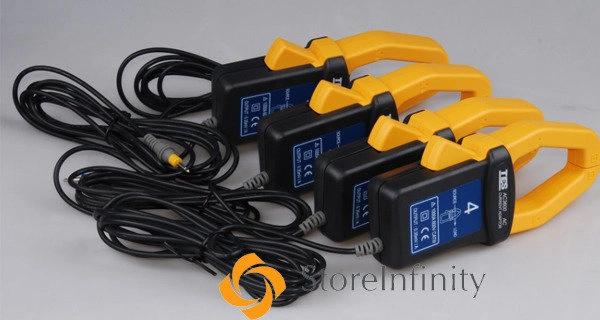

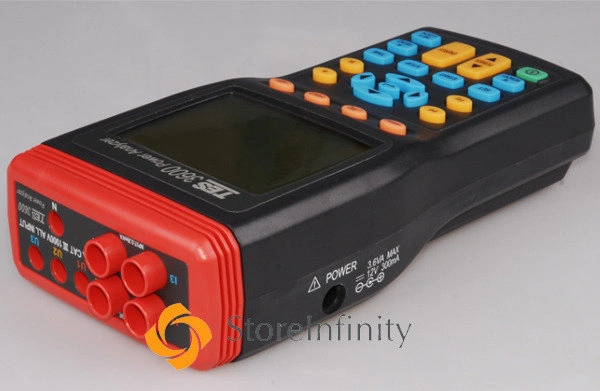

· Connectors for 4 Current Sensing Clamps
· 1P2W, 1P3W, 3P3W2M & 3P4W Power Measurement
· True RMS Sensing
· Power KW, KVAR, KVA, PF, θ ,Hz, & Energy KWh, KVARh & KVAh Measurement
· Phase sequency indicator function
· Backlight display function
· Manual Data Memory and Read (99 sets)
· Data Logging (512KB Memory, 20,000 sets)
· Programmable Trigger - Points and Start / Stop Time
· RS-232 Optical Interface with three phase voltage / current Waveform display and Harmonic analysis
· Easy - to - use Push - Button Operation
· Light Weight, Portable Design

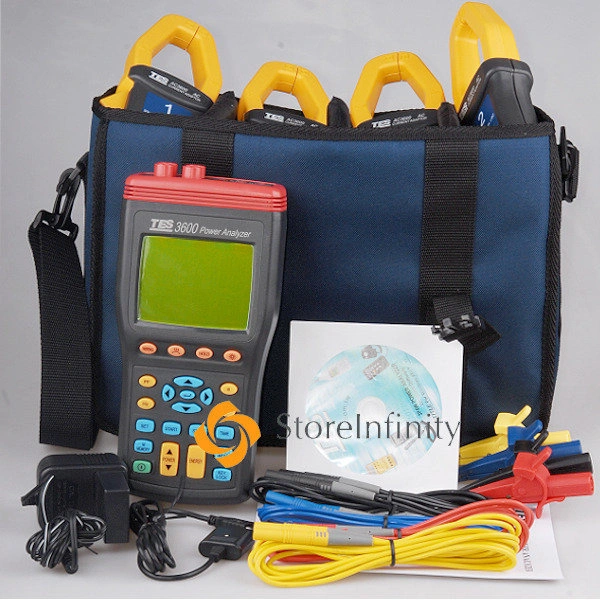

Package Includes:
· 1 x 3 Phase Power Analyzer Tester RMS w/Software
· 1 x Original Package
Specifications:
|
|
Voltage Measurement (V)
|
|
Ranges
|
Method
|
Accuracy
|
Input impedance
|
|
999.9V
|
True RMS
|
± 0.5%rdg ± 10dgts (>30V)
|
2M Ω
|
|
Current Measurement (A)
|
|
Ranges
|
Method
|
Accuracy
|
|
250A ¡¢ 500A ¡¢ 1000A
|
True RMS
|
± 0.5%rdg ± 10dgts+clamp on sensor specifications
|
|
Active Power Measurement (KW)
|
|
Ranges
|
Accuracy
|
Effect of power factor
|
|
600.0KW
|
± 0.5%rdg ± 10dgts+clamp on sensor specifications
|
± 0.1%rdg
|
|
Reactive Power Measurement (KVAR)
|
|
Ranges
|
Accuracy
|
Effect of power factor
|
|
600.0KVAR
|
± 0.5%rdg ± 10dgts+clamp on sensor specifications
|
± 0.1%rdg
|
|
Apparent Power Measurement (KVA)
|
|
Ranges
|
Accuracy
|
|
600.0KVA
|
± 0.5%rdg ± 10dgts+clamp on sensor specifications
|
|
Power Integration Measurement
|
|
Power Integration
|
Resolution
|
Accuracy
|
|
0.0KWh to 9999MWh
|
0.1KWh
|
± 0.5%rdg ± 10dgts+clamp on sensor specifications
|
|
0.0Kvarh to 9999Mvarh
|
0.1Kvarh
|
|
0.0KVAh to 9999MVAh
|
0.1KVAh
|
|
Power Factor Measurement
|
|
|
Ranges
|
Accuracy
|
Polarity display
|
|
-1.000(lead) to 0.000 to + 1.000 (lag)
|
± 1dgt for each calculation from measured values
|
When the current lags the voltage unsigned ; when the current leads the voltage : "-".
|
|
Frequency Measurement
|
|
Ranges
|
Measurement source
|
Accuracy
|
|
40Hz to 100Hz
|
Voltage U1
|
± 0.5%rdg ± 1dgt
|
|
General Specifications
|
|
Size
|
235(L)x116(W)x54(H)mm (9.3"Lx4.6"Wx2.1"H)
|
|
Operating Temperature and Humidity
|
0℃ to 50℃ (32 ℉ to 122℉ ) R.H. < 80% non-condensing
|
|
Storage Temperature and Humidity
|
- 10℃ to 60 ℃ (14 ℉ to 140 ℉ ) R.H. < 70% non-condensing
|
|
