MTX 3290

Description

Advantages

Large LCD for multi-parameter display on 70x52 mm screen.

A simple basic multimeter with surveillance of the main functions: Min, Max, Avg and Peak+/- . Digital keyboard with lighting.

Optimized ergonomics: IP67 leakproof casing, IEC61010 600V CAT III/300V CAT IV safety measurement terminals, power supply by normal battery or Ni-MH rechargeable battery (external charger) and contextual reminder of connections on screen.

Description

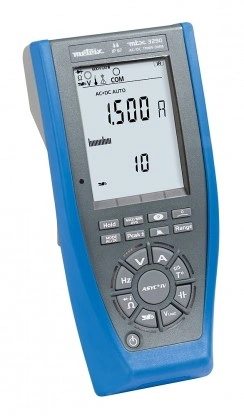

ASYC IV MTX 3290 - The reference for multimeters

These portable multimeters with digital display allowing direct measurement of the main electrical quantities benefit from an innovative design making them compact, rugged, leakproof and comfortable to grip.

Simple multimeters
• Easy-to-read 70x52 mm LCD screen
• Contextual reminder of connection on the screen
• Current autoranging, single terminal up to 10 A
• Secondary measurements in addition to the main measurement to facilitate analysis
• Surveillance of the MIN/MAX and AVG data with relative time/date-stamping and of voltage and current peaks

And much more...
• IP67 protection against water projection and dust,ideal for outdoor conditions
• Powered by 4 standard AA batteries or 4 Ni-MH batteries rechargeable with an HX0051B external module (option)
• Operation for up to 400 hrs on batteries
