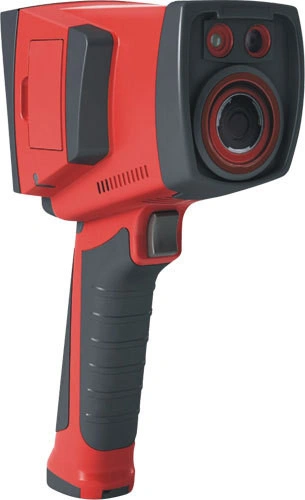

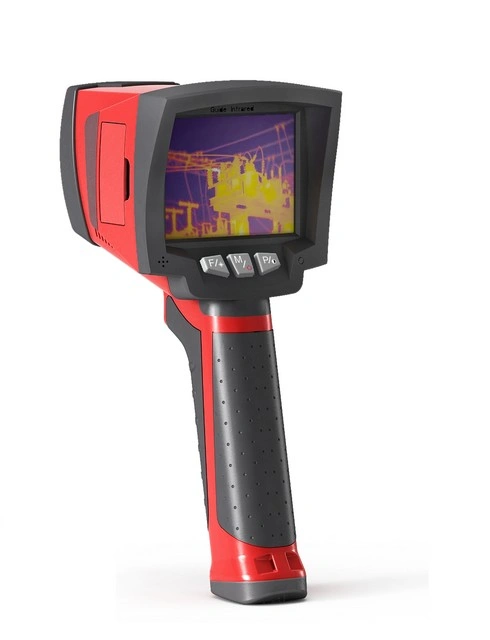

GUIDE EasIRTM E1 Series is an easy-to-use Infrared camera

Imaging Performance

Thermal

Detector Type

Uncooled FPA Microbolometer

Spectral Range

8 to 14 µm

Pixels

160 x 120, 25 µm

Sensitivity

0.1 °C @ 30 °C

Lens/FOV

11mm 20.6 X 15.5

Focus

Motorised (thermal)

Image Frequency

50HZ

Electronic Zoom

X2

Palette

4

Visual

Built-in Digital Video

N/A

Imaging Display

External Display

3.6" TFT LCD screen

Video Output

N/A

Infra Fusion

N/A

Live thermal video

recording

N/A

Built-in Flash

N/A

Measurement

Temperature Range

-20°C to 250°C

Accuracy

±2°C or ±2% of reading

Measurement modes

Hot/cold point mark center point

Emissivity  Correction

Variable from 0.01 to 1.00, on-screen

Measurement Features

Automatic correction based on distance,

Rellative humidity, atmospheric

Transmission and external optics

Image Storage

Media

Removable 2GB Mini SD card

File Format

JPEG with analysis records

Number of Images Stored

Up to 1000

Voice Annotation

N/A

Laser Locator

Classification Type

N/A

Man-Machine Communication

USB 2.0

For image transfer only

Power System

Battery Type

AA Alkaline battery,

Or AA Rechargeable Battery

Charging System

In camera or in battery charger

Battery Operating Time

Over 2 hours

External Power Operation

AC adapter 110/220VAC, 50/60Hz

Environment

Operating temperature

-10°C to 50°C

Storage Temperature

-20°C to 60°C

Humidity

Operating and storing 10% to 95%,

non-condensing

Encapsulation

IP54 IEC 529 housing

Shock

Operational: 25G, IEC68-2-29

Vibration

Operational: 2G, IEC68-2-6

Physical Characteristics

Size

111mmX124mmX240mm

Weight

0.73Kg (including battery)

Comparison Between The Models

Thermal

EasIR-4

EasIR-2

EasIR-1

Detector Type

Uncooled FPA Microbolometer

Uncooled FPA Microblometer

Uncooled FPA

Microblometer

Spectral Range

8 to 14µm

8 to 14µm

8 to 14µm

Pixels

160 x 120, 25 µm

160 x 120, 25 µm

160 x 120, 25 µm

Sensitivity

0.1°C @ 30°C

0.1°C @ 30°C

0.1°C @ 30 °C

Lens/FOV

11mm 20.6° X 15.5°

11mm 20.6° X 15.5°

11mm 20.6° X 15.5°

Focus

Automatic and motorised (thermal and visual )

Motorised (thermal)

Motoried (thermal)

Image Frequency

50HZ PAL/ 60HZ NTSC

50HZ

50HZ

Electronic Zoom

X2

X2

X2

Palette

8

6

4

Visual

Built-in Digital Video

CMOS Sensor,

1600x1200 pixels (2 Mpixels),

2²⁴     True Colour

CMOS Sensor , 1600x1200 pixels (2Mpixels),

2²⁴    True Colour

N/A

Imaging Display

External Display

3.6" TFT LCd screen

3.6" TFT LCD screen

3.6" TFT LCD screen

Video Output

PAL/NTSC

N/A

N/A

Infra Fusion

Visual and IR blending

Visual and IR blending

N/A

Live thermal video

Recording

Video recording via USB to PC

N/A

N/A

Built-in Flash

Yes

Yes

N/A

Measurement

Temperature Range

-20°C to 250°C (350°C, 1200°C optional)

-20°C to 250°C (350°C, 1200°C optional)

-20°C  to 250°C

Accuracy

±2°C or ±2% of reading

±2°C or ±2% of reading

±2°C or ±2% of reading

Measurement modes

Hot/cold point mark and center point

Hot/cold point mark  and center point

Hot/cold point mark and center point

Emissivity Correction

Variable from 0.01 to 1.00, on-screen

Variable from 0.01 to 1.00, on-screen

Variable from 0.01 to 1.00, on-screen

Measurement Features

Automatic correction based on distance, relative humidity, atmospheric transmission and external

optics

Automatic correction based on distance,

relative humidity, atmospheric transmission and external optics

Automatic correction  based on distance, relative humidity, atmospheric transmission and external optics

Image Storage

Media

Removable 2GB Mini SD card

Removable 2GB Mini SD card

Removable 2GB Mini SD card

File Format

JPEG with analysis records

JPEG with analysis records

JPEG

Number of Images Stored

Up to 1000

Up to 1000

Up to 1000

Voice Annotation

60s / image

N/A

N/A

Laser Locator

Classification Type

Class 2 semiconductor laser

Class 2 semiconductor laser

N/A

Man-Machine Communication

USB 2.0

For video and image transfer

For image transfer only

For image transfer only

Power System

Battery Type

AA Alkaline batteries,

or AA Rechargeable Batteries

AA Alkaline batteries,

or AA Rechargeable Batteries

AA Alkaline battery, or

AA rechargeable batteries

Charging System

In camera or in battery charger

In camera or in battery charger

In camera or in battery charger

Battery Operating Time

Over 2 hours

Over 2 hours

Over 2 hours

External Power Operation

AC adapter 110/220VAC, 50/60Hz

AC adapter 110/220VAC, 50/60hz

Ac adapter 110/220VAC, 50/60hz

Environment

Operating Temperature

-10°C to 50°C

-10°C to 50°C

-10°C to 50°C

Storage Temperature

-20°C to 60°C

-20°C to 60°C

-20°C to 60°C

Humidity

Operating and storing 10% to 95%, non-condensing

Operating and storing 10% to 95% non-condensing

Operating and storing 10% to 95%, non-condensing

Encapsulation

IP54  IEC 529 housing

IP54 IEC  529 housing

IP54 IEC 529 housing

Shock

Operational: 25G, IEC68-2-29

Operational: 25G, IEC68-2-29

Operational: 25G, IEC68-2-29

Vibration

Operational: 2G; IEC68-2-6

Operational: 2G; IEC68-2-6

Operational: 2G; IEC68-2-6

Physical Characteristics

Size

111mmX124mmX240mm

111mmX124mmX240mm

111mmX124mmX240mm

Weight

0.73Kg (including battery)

0.73Kg (including battery)

0.73Kg (including battery)
