Wavelengths (nm): 1310 / 1550 / 1625
Dynamic Range (dB): 37 / 35 / 35
Event Deadzone* (m): < 0.8
Attenuation Deadzone* (m): < 3.0

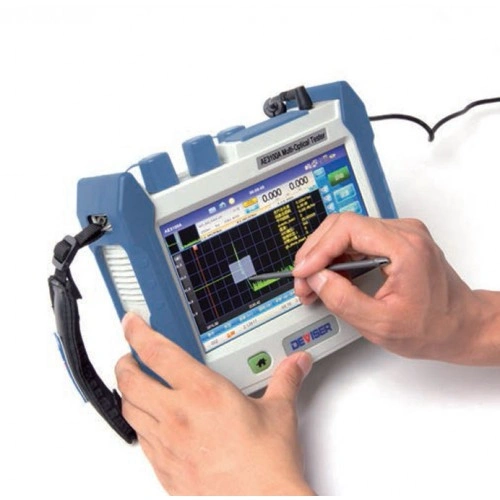

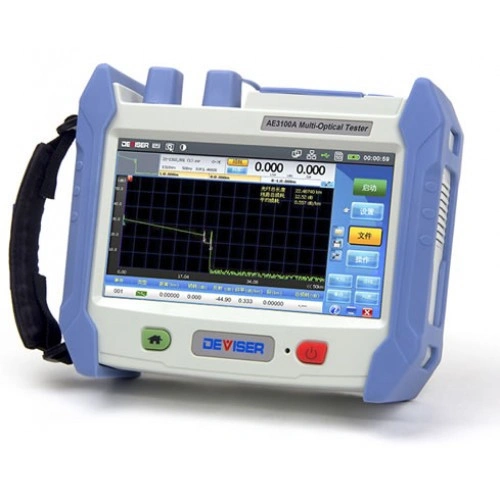

From Deviser Instruments’ 4th generation of OTDR, the AE3100 marks a giant leap forward in fiber-optic test performance and utility. CP, DP, and EP models support three wavelengths, with dynamic range up to 43dB; AE3100G tests four wavelengths, customizable to your needs. Input signals that contain both 1310nm & 1550nm wavelengths are automatically filtered.

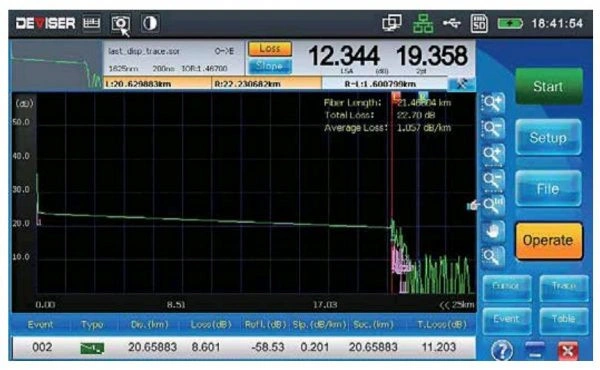

Featuring intuitive touchscreen controls and real-time data analysis, the AE3100 is the ideal test instrument for constructing, deploying, maintaining, and authenticating FTTx networks as well as verifying access networks. Multiple models and configuration options ensure your unique measurement needs are covered.
| Applications
Construction, deployment, maintenance, and authentication of the following networks: – FTTx – Long Haul Networks – Passive Optical Networks (xPON) – Local Area Networks (LAN) – Metropolitan Area Networks (MAN) |
