Chauvin Arnoux-ORITEL BDH 100 BENCH

Description

Description

The ORITEL BDH R100 microwave training bench has been developed to meet teaching and adult training requirements in civil and military contexts.

Uses the rectangular standard waveguide R100/WR90 technique.

Frequency range from 8.5 to 9.6 GHz.

Equipped with the EASYFIX™ fast assembly system

Study of the GUNN oscillator

Wavelength measurement

Standing wave ratio measurement

Impedance measurement

Frequency measurement

Reading the quadratic law of a detector, etc.

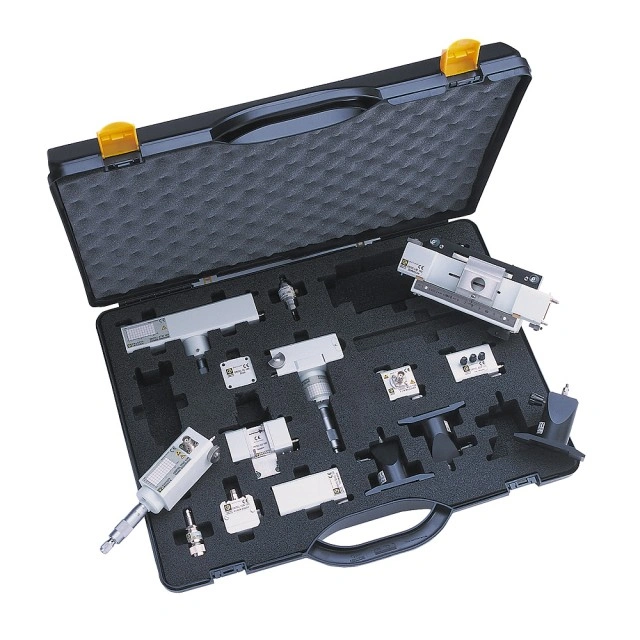

This microwave training bench comes with detailed course material and practical exercises comprising 14 components.

State of Delivery

1-ORITEL OSG 100 GUNN diode oscillator

1-ORITEL ISO 100 ferrite isolator

1- ORITEL MOD 100 PIN  diode modulator

1- ORITEL ATM  variable  attentuator

1- ORITEL OND 100 cavity wavemeter with curve

1- ORITEL LAF 100 measuring line

1- ORITEL ADZ 100/3 impedance adaptor

1-ORITEL TGN 100 waveguide -to-coax transition element

1-ORITEL DEN 100 coaxial detector

1- ORITEL  CHG 100 adapted load

1-ORITEL CC 100 short circuit platelet

3- ORITEL SUP 100 guide support
