Univesal IC Tester + LCR Meter

Univesal IC Tester + LCR Meter

Price on request
Phone orders - 011 805 5030 / Whatsapp: 0843797031011 805 5030 / Whatsapp: 0843797031, Monday-Friday, 08:00-17:00
Product code - SKU: 68032

Description

Product Description

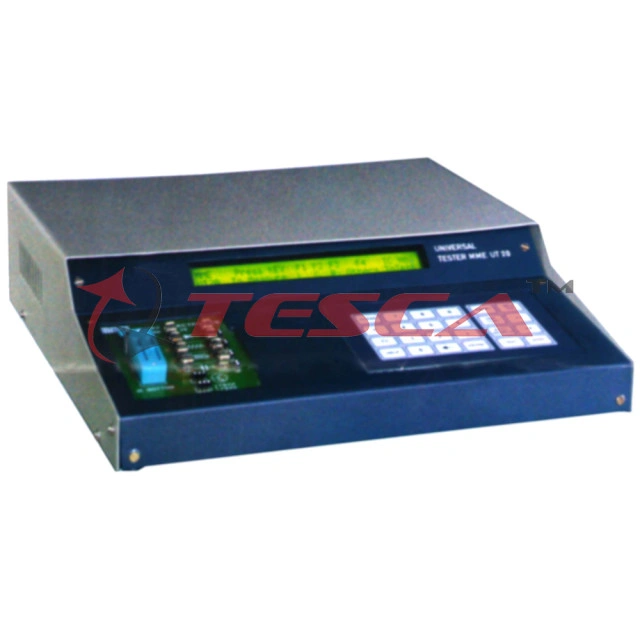

68032 is the latest Micro controller based Universal IC Tester with LCR Meter. It functionally tests 74 series of TTL ICs 40 & 45 series of CMOS IC, Analog/ Linear ICs opamps, comparators, timers, transistor arrays, ADC, DAC etc

SPECIFICATION

68032 is the latest Micro controller based Universal IC Tester with LCR Meter. It functionally tests 74 series of TTL ICs 40 & 45 series of CMOS IC, Analog/ Linear ICs opamps, comparators, timers, transistor arrays, ADC, DAC etc., It also tests components like diode, transistors, UJT, FET, SCR, Displays, regulators, (78/79) and DIP relays. It also measures the values of Inductance (L), capacitance (C) and Resistance (R). 68032 has RS 232 Serail interface through which IC Test Library could be expanded.
  • Digital IC Tester to test Digital ICs TTL/ CMOS (14/16/20 Pins)
  • Analog IC Tester to test Linear/ analog ICs (4, 6, 8, 14, 20 Pins)
  • LCR Meter - Measures L, C, R, with Calibration Facility
  • Micro controller Development System
  • Serial Port for Upgradation
  • Buzzer for Bad IC indication.
  • Components Tester to test Diode, Transistors, SCR, UJT, FET Regulator & Displays

Technical Specification
  1. Display : 40x2 Backlit Alphanumeric LCD
  2. Keyboard  : 24 keys Membrane Keyboard
  3. Socket :
    • 20 Pin ZIF Socket for DIP ICs Components Holder/ Machine base for D/L/C/R
    • 3 pin Machine base for Transistors, UJT, FET, SCR
    • 3 pin Machine base for 78XX/ 79XX Regulator
  4. Test Range :  Digital & Linear ICs, 6, 8, 14, 16, 20 Pin in DIP Pack. Active & Passive Components
  5. Enclosure  : Sheet Metal Cabinet with powder coating and Engraving
  6. Voltage  : 230VAC 50 Hz ± 10%
