Product Description

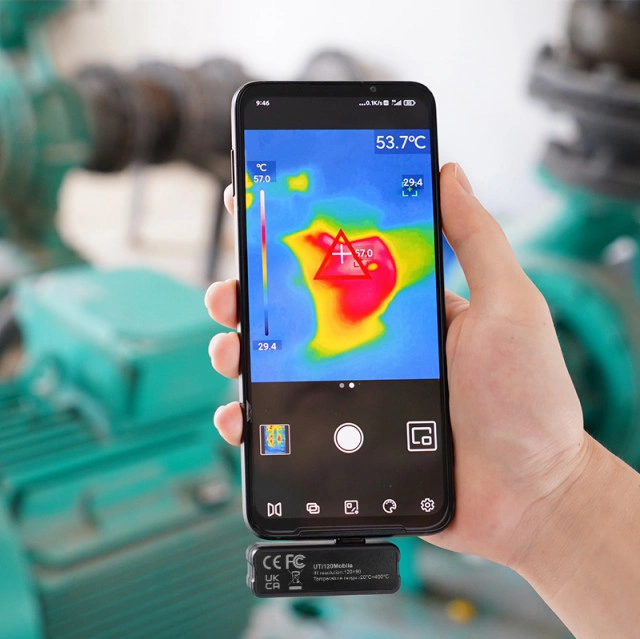

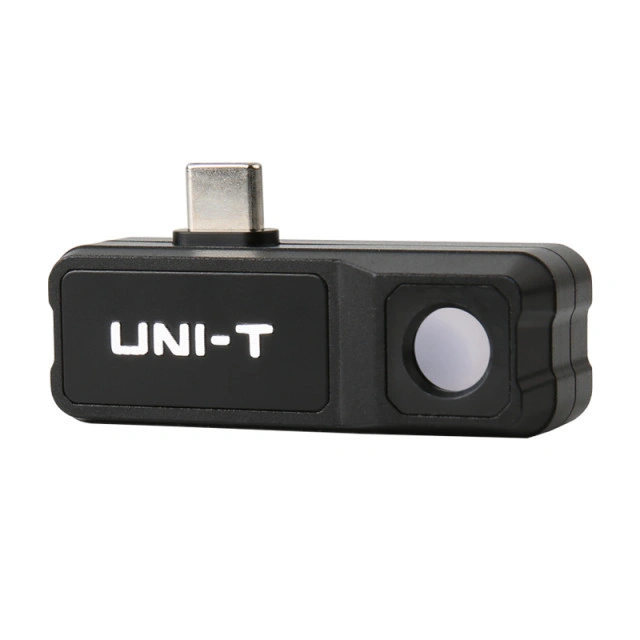

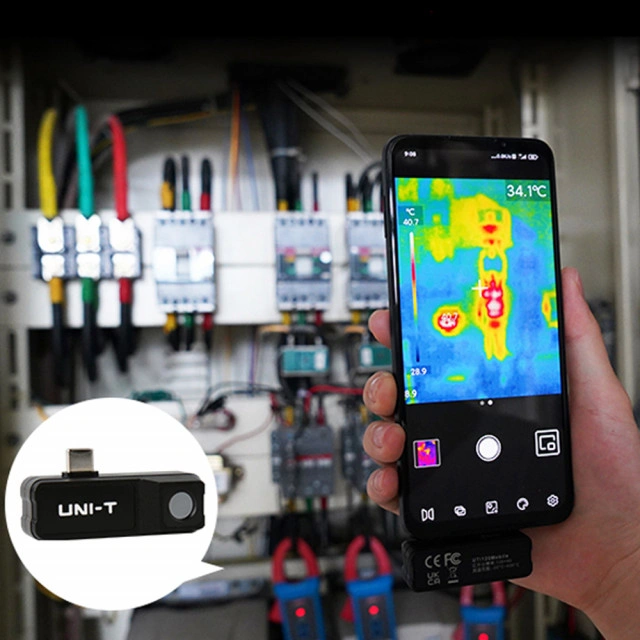

UTi120M is a professional smartphone thermal camera module for Android, which is compact, portable, and easy to operate through connecting with mobile phones. UTi120M rovides clear image with a fast response, and can also detect temperature up to 400℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module.
It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.
Smartphone Thermal Camera Module for Android
- IR resolution: 120×90
- Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- On display screen analyzer: 6 Points/6 Lines /6 Rectangles/6 Circles
- Image capture
- Video recording
- Color palettes: 7 (White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
- Phone: Android (USB Type-C interface)
- 1m extension cable
- 1m drop proof
Product Specifications of UTi120M
| Technical Data |
| IR resolution (Pixels) |
120×90 |
| Field of view(FOV) |
50°×38° |
| Thermal sensitivity(NETD) |
≤60mK @25℃ |
| Spatial resolution(IFOV) |
7.3mrad |
| Frame rate |
≤25Hz |
| Focus |
Focus free |
| Lens focal length |
2.28mm |
| Temperature measurement range |
-20℃ ~ 400℃ |
| Accuracy |
±2℃ or ±2%
whichever is greater |
| Emissivity |
0.01~1.00 adjustable (0.95 default) |
| Functions |
| Color palettes |
7
(White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC) |
| Image modes |
Thermal,Fusion,PIP |
| On screen analyzer |
6 Points/6 Lines/6 Rectangles/6 Circles |
| Hi/Lo temperature alarm |
√ |
| Video recording |
√ |
| General Characteristics |
| USB |
Type-C |
| Drop proof |
2m |
| Image/Video storage format |
JPEG, MP4 |
| Certificates |
CE,UKCA,FCC,RoHS |
| Languages |
ZH, EN |
| Product net weight |
25g |
| Product size |
53mm×18.2mm×18.5mm |
| Packing Details |
| Standard accessories |
Micro USB adapter, USB cable, English manual, Documents download operation guide card |
| Standard individual packing |
Gift box |
| Standard Qty per carton |
20pcs |
| Standard carton size |
290mm×265mm×325mm |
| Standard carton G.W. |
4.8kg |
