3 INSTRUMENTS IN 1
DC Field measurements
Spectrum Analysis – FFT up to 10 MHz
Broadband measurements up to 60 GHz

WEIGHTED PEAK METHOD (WPM)
Real-time comparison in % with the selected limits up to 10 MHz

ONE SINGLE METER FOR ALL PROBES
Isotropic and high accuracy probes
Electric and Magnetic field
Probe auto-detect capability

ASSESSMENTS ACCORDING TO INTERNATIONAL STANDARDS
EU Directive 2013/35, ICNIRP, IEC, EN, IEEE, SC6, etc.
All limits embedded in a single meter

USB AND FIBER OPTIC COMMUNICATION PC software included
Data download, automatic reporting, and remote control

FIRMWARE UPGRADE
Easy and fast install to upgrade capabilities

Datasheet_SMP3_EN.pdf

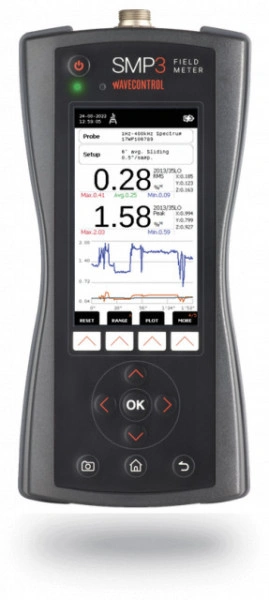

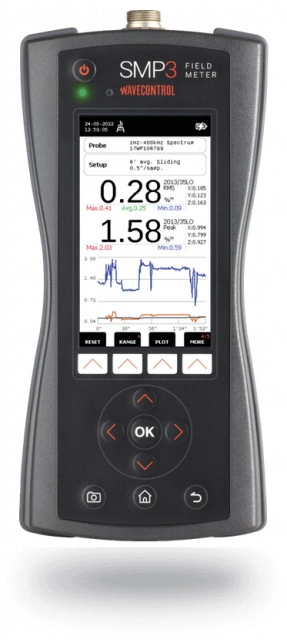

3-in-1 Field Meter

The only device that offers genuine 3-in-1 functionalities: broadband measurements (DC to 60 GHz), frequency spectrum analysis (DC to 10 MHz) and static field measurements.

The SMP3 field meter provides the most advanced features and technology on the market, designed for users who need high-quality measurements, ease of use and good reporting tools.

SMP3 Field Meter features

• 3-in-1 Field Meter: spectrum analysis (DC – 10 Mhz), broadband (DC - 60 GHz) and static field measurements.


• Real-time FFT-based spectrum analysis using digital processing.


• Weighted Peak Method (WPM) for automatic and real time comparison with limits.


• Special auto-gain function for peak detection (indispensable for procedures such as welding).


• Display of results in RMS and peak values.


• Function for time domain measurement of a specific frequency.


• Automatic field probe recognition.


• E&H field selection.


• Total field value and value for each component (X, Y, Z).


• Frequency SPAN selection.


• High Pass Filters at 1 Hz, 10 Hz, 25 Hz and 100 Hz.


• Max-hold function.


• Display of maximum, minimum and average values.



• Sliding window function according to standards.


• Spatial average function.


• Adjustable measurement time from 1s to 100 hours.


• Programmable measurement to start at a given time.


• Graphic display of broadband measurement changes over time.


• Adjustable graph display from 1 s to 12 minutes.


• Programmable alarm function.


• Digital output for real time external measurements.


• USB-C and fibre optics connection.


• Large storage capacity.


• Screen-shot function for reporting.


• PC software for control and reporting.


• Results can be uploaded automatically to a web-page control centre.


• Available in several languages.




Accessories

SMP3 included accessories:

‘SMP Reader’ PC software

SMP3 carrying case

USB Cable

AC/DC charger

SMP3 optional accessories

SMP3-Streamer option

Non-reflective wooden tripod

Tripod extension

Probe support for tripod

Probe extension cable

GPS

Fiber optics interface

SMP3 protective pouch

SMP3 backpack

Vehicle DC charger
