Description
|
Product Overview

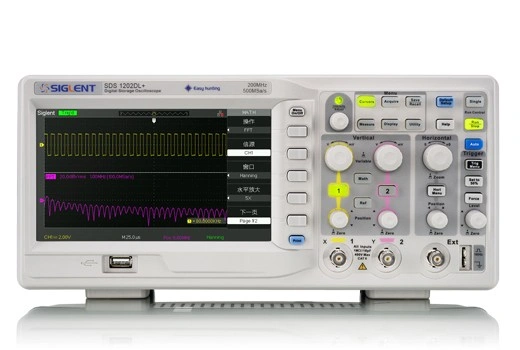

SDS1000DL+ series is a dual-channel universal digital oscilloscope, available in 50 MHz, bandwidth models. It includes a 30 Kpts memory depth that helps to ensure accurate waveform resolution and to capture longer signal lengths. With its 7 inch TFT-LCD (800*480) screen, there is adequate screen space to help better see and analyze waveform details. Along with a 1 GSa/s sampling rate, the SDS1000CML+ supports 32 parameters measurements and common mathematical operations to speed up complex / repetitive measurements.
|
Key Features
◆ 50 M Hz bandwidth models
◆ Real-time sampling rate up to 500 MSa/s, Equivalent-time sampling rate up to 50 GSa/s
◆ Memory Depth up to 30 Kpts
◆ Trigger types: Edge, Pulse, Video, Slope, Alternate
◆ Waveform math functions:+, -, *, /, FFT
◆ 6 digital frequency counter
◆ Supports Multi-language display and embedded online help
◆ Screensaver from 1 minute to 5 hours
◆ Digital filter and waveform recorder function
◆ Shortcut storage function key
◆ 7 inch TFT-LCD display with 800 * 480 resolution
◆ Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail
