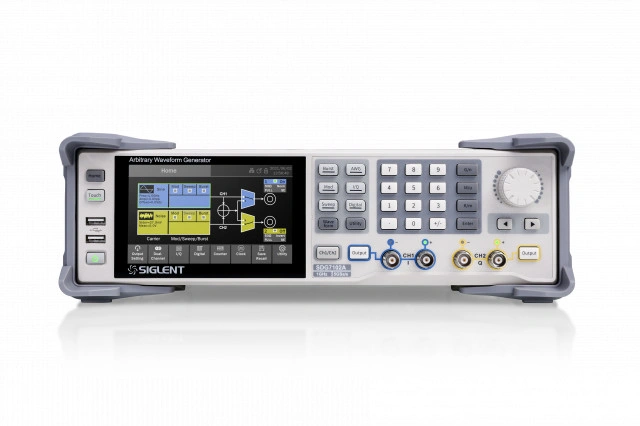

SIGLENT’s SDG7000A is a family of dual-channel Arbitrary Waveform Generators that feature up to 1 GHz bandwidth, a maximum sample rate of 5 GSa/s, and 14-bit vertical resolution. It can generate arbitrary waveforms point by point with a maximum 2.5 GSa/s sample rate and vector signals with a maximum of 500 MSa/s. It also has the ability to generate a variety of signals such as continuous wave, Pulse, Noise, PRBS patterns, and a 16-bit digital bus. It supports the generation of complex signals such as modulation, sweeping, bursting, and dual-channel copying/coupling/tracking and superposition. The outputs are user selectable for differential or single-ended connections and support a maximum output range of ± 24 V. The instrument can ensure a large amplitude under high-frequency which eliminates an external power amplifier in some applications and addresses a wider range of requirements.
Key Features
- Generates low jitter pulses with 1 ns minimum pulse
width and 500 ps minimum edge
- Up to 1 GHz bandwidth and White Gaussian Noise with adjustable bandwidth
- PRBS up to 312.5 Mbps
- LVTTL and LVDS Digital bus options for digital signal sourcing up to 1 Gbps
- Includes popular analog/digital modulation types, sweeping and bursting functions
- Enhanced dual-channel operation functions: inter-channel tracking, coupling, and copying
- Dual-channel superposition function
- Mutual modulation between channels
- The 24 Vpp analog output is superimposed with ± 12 Vdc offset to provide a maximum output range of ± 24 V (48 V)
- High precision Frequency Counter
- 5-inch capacitive touch screen with a resolution of 800×480
- External mouse and keyboard operation
- WebServer to control the instruments remotely without downloading software
- Includes 10 MHz In, 10 MHz Out, Trigger In/Out, and Marker sync connections
- Full SCPI command manual for easy integration into test systems
Click Here for Specifications
|
Max Output Frequency |
Max Sampling Rate |
Vertical Resolution |
Waveform Length |
Channels |
| SDG7102A |
1 GHz |
5G Sa/s |
14-bit |
512Mpts |
2 Differential/Single-ended |
| SDG7052 |
500MHz |
5G Sa/s |
14-bit |
512Mpts |
2 Differential/Single-ended |
| SDG7032 |
350MHz |
5G Sa/s |
14-bit |
512Mpts |
2 Differential/Single-ended |
