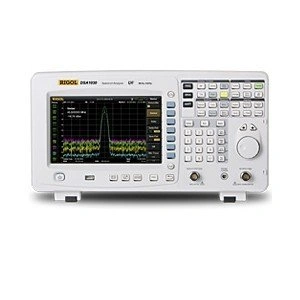

The Rigol DSA1030 is a compact and light Spectrum Analyzer with premium performance for portable applications. The use of digital IF (intermediate frequency) technology guarantees reliability and performance to meet the most demanding RF applications.
The very large display (21.6 cm / 8.5") of the Rigol DSA1030 Spectrum Analyzer with a resolution of 800x480pixels provides a very good overview over all its comfortable functions like Auto Tune, Auto Range, Auto Scale and Auto Couple. These functions enable the analyzer to acquire signals and match parameters automatically, instead of the manual process necessary with a traditional analyzer.
The Rigol Spectrum Analyzers have a sophisticated and easy to use user interface and offers multiple functions for all tasks. The menu navigation is very intuitional in use and all functions and parameters are easy to reach because of the graphical interface.
Specifications:
|
Spectrum Analyzer |
Spectrum Analyzer Rigol DSA1030 |
|
Display |
21.6 cm (8.5") TFT-Color-LCD with 65536 colors |
|
Resolution |
800 × 480 Pixel |
|
Interfaces |
• USB-Host (for USB stick i.e. to save/load waveforms) • USB for a PC connection • LAN for network connection • GPIB (IEE-488, General Purpose Interface Bus) • VGA interface to connect an external display |
|
Dimensions |
399 mm × 223 mm × 159 mm |
|
Weight |
6.2 kg (13.67 lbs) |
|
Supported operation systems |
Windows XP(32Bit), Vista(32Bit), Windows 7(32Bit) |
|
Function |
Spectrum Analyzer Rigol DSA1030 |
||
|
Channels |
1 |
||
|
Frequency Range |
9 kHz to 3 GHz |
||
|
Frequency Resolution |
1 Hz |
||
|
Internal Frequency Reference |
10 MHz |
||
|
Span |
0 Hz (zero Span) |
||
|
DANL (without preamplifier) |
100 kHz to 10 MHz
10 MHz to 2,5 GHz
2,5 GHz to 3 GHz |
< -75dBm-3x(f/1 MHz)dB < -117dBm-3x(f/1GHz)dB < -105dBm |
|
|
DANL (with preamplifier) |
100 kHz to 1 MHz
10 MHz to 2,5 GHz
2,5 GHz to 3 GHz |
< -93dBm < -135dBm-3x(f/1GHz)dB < -123dBm |
|
|
Amplitude Range |
DANL to +30 dBm |
||
|
Max. Input Voltage |
50 V |
||
|
Sweeptime Range |
100 Hz ≤ Span ≤ 3 GHz |
10 ms to 3000 s |
|
|
Sweepmodes |
Normal or Single |
||
|
Resolution Filter |
10 Hz to 1 MHz (in 1-3-10 sequence) |
||
|
Video Filter |
1 Hz to 3 MHz (in 1-3-10 sequence) |
||
|
Input Impedance |
50 Ω nominal |
||
