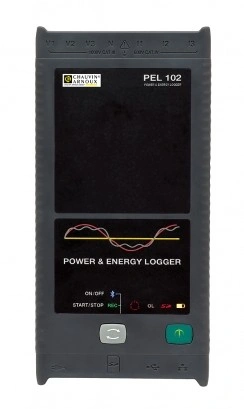

PEL102 POWER-ENERGY LOGGER

Description

Advantages

• Single-phase, split-phase and three-phase installations with or without a neutral, as well as other complex configurations.
• Implementation without cutting off the mains power supply
• BlueTooth, Ethernet and USB communication
• Automatic recognition of the sensors connected
• Recording on SD and SD-HC cards
• Real-time communication with a PC and analysis using PEL Transfer

Description

Ergonomic, magnetized and suitable for all types of cabinets, PEL102 loggers provide all the power and energy measurements simultaneously.

Other specifications:

• Voltage up to 1,000 V
• Current up to 10,000 A
• Voltage ratio / current ratio up to 650,000 V / up to 25,000 A
• Power from 10 W/var/VA to 10 GW/Gvar/GVA
• Energy up to 4EWh / 4 EVAh / 4 Evarh
• Phase: cos φ, tan Φ, PF
• Harmonics up to 50th order
• 2 GB SD memory card (SD-HC card up to 32 GB)
