PEL 105 Logger

Product Description

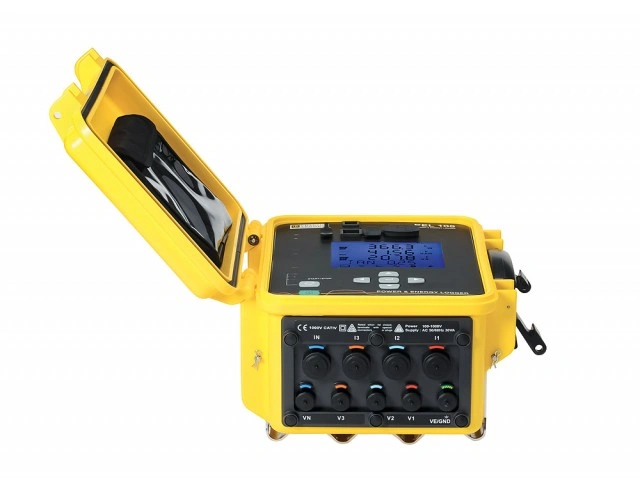

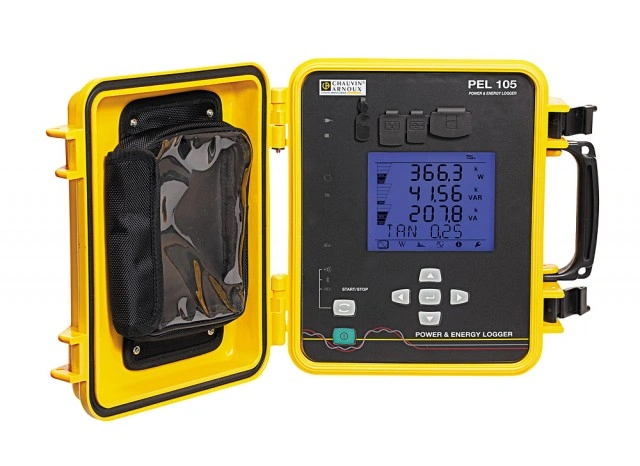

Chauvin Arnoux Model PEL 105 is a simple to use, power and energy data logger that monitors both traditional and renewable energy sources. It monitors and records True RMS voltage and current, power, energy, cost and harmonics locally or from anywhere in the world. The PEL 105 is built into a waterproof case with an IP67 rating designed for outdoor use and is ideal for pole mounting and can be powered from a phase being monitored. This product is perfect for electricians, engineers and contractors doing work in the areas of building and system monitoring and upgrades, including compliance to article 220.87 of the NEC, as well as overall energy audits and incoming power monitoring. It is available with an Android™ App to configure, view and capture data wirelessly. Bluetooth and Wi-Fi wireless communication provides the operator with the ability to work from a safe distance away from dangerous voltages and currents.

Advantages

• 5 voltage inputs & 4 current inputs
• All-terrain shockproof casing resistant to UV light and high temperatures

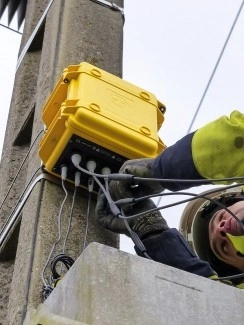

• Ideal for mounting on electricity poles
• Self-powered by its voltage inputs up to 1,000 V
• Continuous recording at 200 ms intervals
• Measurements in compliance with IEEE 1459

Inputs	5 Voltage / 4 Current
Sample Rate	128 per Cycle				6.4kHz at 50Hz	7.68kHz at 60Hz
Specification	Range				Measurement Range	Resolution	Accuracy (Typical)
Volt
Vrms	1000V P to N				10 to 1000V	0.1V	±0.2% Rdg +0.2V
Vrms	1000V E to N				10 to 1000V	0.1V	±0.2% Rdg +0.2V
Urms	1000V P to P				17 to 1000V	0.1V	±0.2% Rdg + 0.4V
Amps @ 50 and 60Hz
Amps (1V nominal) (excluding clamp accuracy	Probe dependent			0.2%< I < 120% Inom		Probe dependent	±0.2% Rdg + 0.02% Inom
AmpFLEX & MiniFlex  (including sensor accuracy)	Range 100A  Range 400A Range 2kA Range 10kA			200mA to 120A 5 to 440A 50 to 2400A 400A to 12kA		1mA 0.1A 0.1A & 1A 1A	±1.2% Rdg + 50mA ±1.2% Rdg + 0.2A ±1.2% Rdg + 1A ±1.2% Rdg + 5A
Frequency				42.5 to 69Hz		0.01Hz	±0.1Hz
Power
Watts (VA, var) P-Q-S				20W to 20GW / 20var to 10Gvar / 20VA to 10GVA		4 digits min	±0.5% Rdg + 0.005% Pnom
Power Factor (Cos Φ/DPF)				-1  to 1		0.001	±0.05
Energy
kWh (kVAh, kvarh) P-Q-S		Up to 4EWh / 4Evarh / 4 EVAh (E = 1018 )					±0.5% Rdg
Harmonics		DC, 1 to 50
Volts & Amp %				0.01 to 655.0%		0.01%	±1% Rdg from 1 to 25
THD				0.00 to 655.0%		0.01%	±1% Rdg
General Features
Case			Design Rugged field case
Interface			Isolated USB, Bluetooth, and Ethernet, Wi-Fi, SD card for direct transfer to PC. Dataview software for real time data, configuration and reporting included
Memory			8GB SD card (SDHC compliant, FAT32 formatted)  32GB max
Display			LCD with backlight 4.2 x 3.3” (107 x 84mm)
Real-Time Clock			Time and date stamp for Trend mode
Power			Phase to phase or phase to neutral 100 to 1000VAC or external power pack 110V/230V 50/60Hz 15VA; Battery backup when power OFF, 60 minutes typical
Dimensions (L x W x H)			9.65  x 10.6 x 7.1” (245 x 270 x 180mm)
Weight			8.9 lbs (4kg)
Altitude Operating			2000m (6560ft)
Operating Temperature			32° to 108.5°F; (0° to +42.5°C) from 10 to 85% RH
Storage Temperature			-4° to 122°F; (-20° to +50°C) from 0 to 75% RH with battery pack
Electro-Magnetic-Compatibility (EMC)			EN 61326-1 for emission and immunity
IP Rating			IP 67 per IEC 60529
Safety			IEC/EN 61010-1 (1000V CAT IV Pol 4)
