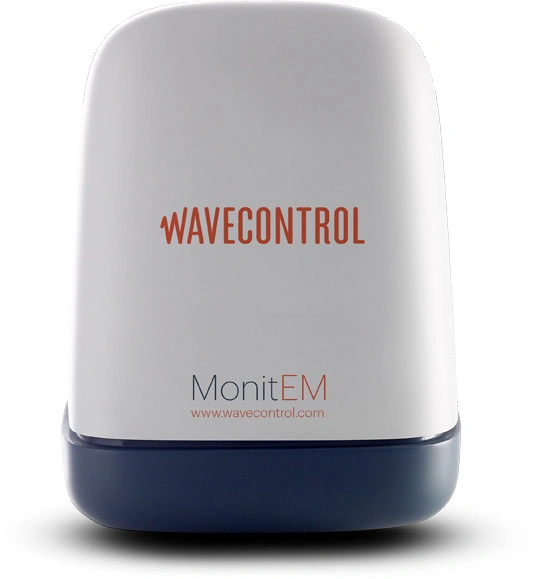

MonitEM Continuous EMF monitor
Description
MonitEM Continuous EMF monitor
24/7 Monitoring Guaranteed autonomy with the “Smart Energy” function (AC + solar panel + battery)
Broadband measurements Up to 3 kHz in LF and 60 GHz in HF
IP 66 environmental protection Resistant to extreme weather conditions
Compliance with ITU-T K.83 Direct, easy and comprehensible comparison with regulated limits
Easy installation Accessories for easy installation in different surroundings
Control Centre Optional software for system management
E & H (10 Hz – 3 kHz)
E (100 kHz - 60 GHz)
H (300 kHz – 1000 MHz)
E (Mobile & WiFi)
24/7 Monitoring
The built-in modem allows the remote wireless communication of the continuous EMF monitor with the Control Centre.
Easy installation
The EMF monitor is equipped with accessories to make installation easy almost anywhere.
The basic criteria for installation are:
- Monitoring a specific transmitter: installation near the antenna, if possible, within the direction of maximum radiation, making it reasonable to assume that all other points in the vicinity will have lower levels than those measured.
- Monitoring a specific point: installation directly at that point; all radiation reaching that point from every direction is recorded. Examples of special interest points include day-care centres, schools, hospitals, public buildings or offices, industrial facilities, airports, military posts, etc.
Resistant to extreme weather conditions

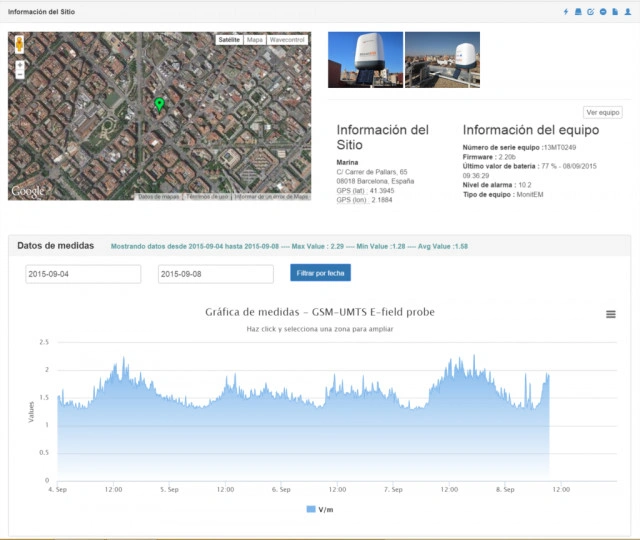

control center
MonitEM devices can be optionally used together with a web server using software that is unique on the market. It allows remote configuration and management of the monitoring equipment, data consultation and report generation, among other functions. It also offers the option of a public Internet page to display data and compare it easily with regulated limits.
ControlCenter_Datasheet_EN.pdf
MANAGEMENT AND CONFIGURATION OF EQUIPMENT
DATA RECEPTION, CONSULTATION AND STORAGE
REPORT GENERATION AND AUTOMATIC DELIVERY
DISPLAY OF PHOTOGRAPHS AND DIAGRAMS
USER FRIENDLY, WITH GOOGLE MAPS POSITIONING
ITU-T K.83 Recommendation
Monitoring of electromagnetic field levels.
The ITU-T K.83 Recommendation provides guidelines for taking long-term measurements for control of electromagnetic fields (EMF) in selected areas of public interest, in order to show that those fields are under control and remain with the established limits. The aim of that Recommendation is provide the general public with clear and easily accessible information on electromagnetic fields set out in the form of the results of continuous measurement.
