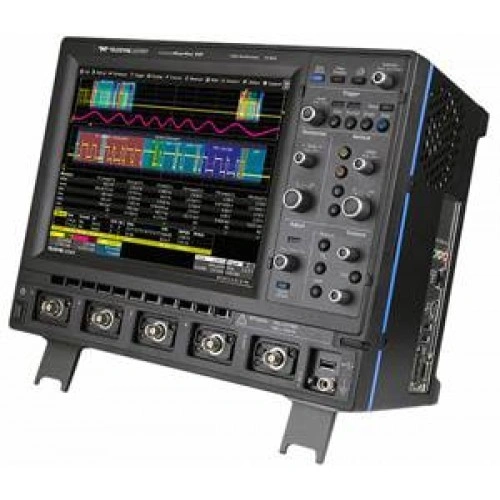

HDO8000 High Definition Oscilloscopes
HDO8000 oscilloscopes have eight analog input channels, 12-bit resolution using Teledyne LeCroy’s HD4096 high definition technology, and up to 1 GHz of bandwidth. They are ideal for debug and troubleshooting of high power three-phase power electronics, automotive electronics, and deeply embedded or mechatronic designs.
- 8 input channels
- 12-bit ADC resolution, up to 15 bits with enhanced resolution
- 350 MHz, 500 MHz, and 1 GHz bandwidths
- Long Memory - up to 250 Mpts/Ch
- 12.1" touch screen display
- DisplayPort 1.2 video output for Ultra HD extended desktop (UHD, 3840 x 2160 pixels)
- Q-ScapeTM tabbed displays
- Mixed Signal capability (16 digital channels, 1.25 GS/s sample rate)
- Serial data trigger and decode
- Powerful analysis capabilities
Capture 8 analog signals plus 16 digital logic signals. Get more information in one place at one time.
HD4096 high definition technology enables oscilloscopes to capture and display signals of up to 1 GHz with high sample rate and 16 times more resolution than other oscilloscopes.
Waveforms captured and displayed on oscilloscopes with HD4096 technology are cleaner and crisper. Signal details often lost in the noise are clearly visible and easy to distinguish HD4096 enables oscilloscopes to deliver unmatched measurement precision for improved debug and analysis.

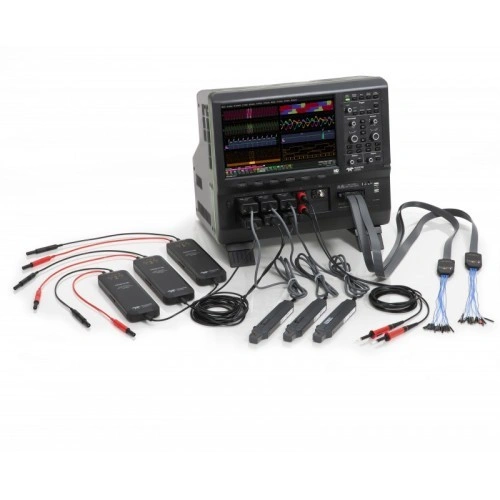

Provides three-phase numerical and waveform power analysis from motor drive input through motor mechanical output. Included are real, apparent, and reactive power measurements, power factor and phase angle, efficiency, and various voltage and current parameters. Both two-wattmeter and three-wattmeter methods are supported, as well as line-line to line-neutral voltage conversion. Motor speed, position, and torque integration are the most complete available. Turn your HDO8000 into a complete measurement and debug tool for the motor, motor drive, and embedded motor control system.
More waveforms requires new display architectures. Unique Q-Scape multi-tab display architecture speeds your understanding of your design with 4x the display area. Quickly move waveforms to different tabs through drag-and-drop.

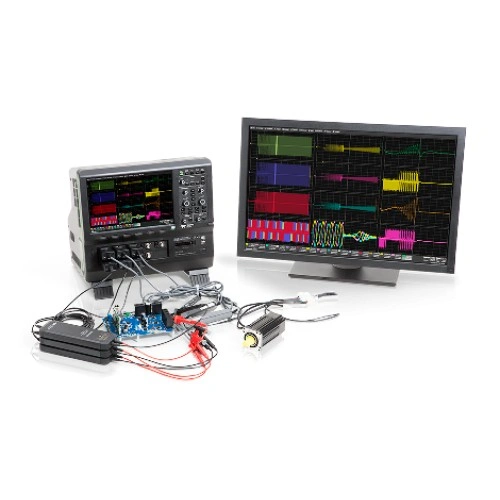

Utilize the DisplayPort 1.2 video output in Extended Desktop mode to maximize display size and screen resolution. Split grids amongst the scope and external display. Purchase an external display that is touchscreen compatible and gain even more flexibility.
Up to 250 Mpts/ch of acquisition memory allows many seconds of data capture. Display up to 40 waveforms (12 math, 12 zoom, 12 memory) and 12 measurement parameters. Most powerful motherboard in its class - Intel Intel Core i5-4570s Quad (core), 2.9 GHz (per core), up to 32 GB of RAM.
|Bandwidth||350 MHz - 1 GHz|
|Standard Memory||50 Mpts - 250 Mpts|
|Max Sampling Rate||2.5 GS/s|
