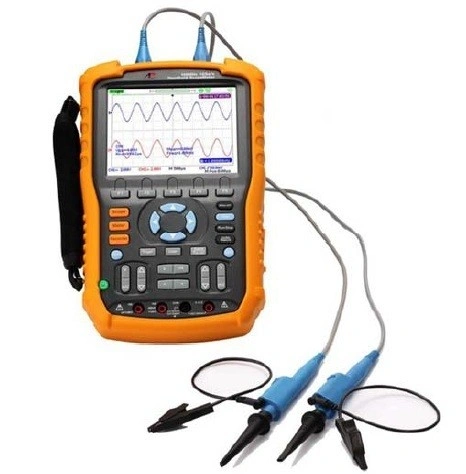

Handheld Digital Oscilloscope ALP1062S 60MHz
Oscilloscopes South Africa
Product Description:
• Design and debug in electron circuitry
• View moment signal
• Industry controlling measure
• Product quality control
• Education and training
• Serving and maintaining
• Weight：1.5Kg
• Size： 163.2mm×259.5mm×53.3mm
Technical Parameters:
|
Handheld Digital Oscilloscope |
|
|
Model |
ALP1062S |
|
Bandwidth |
60MHz |
|
Rise time |
≤5.8ns |
|
Real Time Sample Rate |
1GS/s |
|
Equivalent Sample Rate |
50GS/s |
|
Vertical Sensitivity |
2mV～100V/div |
|
Time Base Scale |
5ns～50s/div |
|
|
Scan:100ms～50s/div |
|
Depth Memory |
2M |
|
Triggering |
Edge, Pulse, Video, Alternative, Slope |
|
Vertical Resolution |
8 Bit |
|
Hardware Counter |
6 Digital Triggering Frequency Counter |
|
Port |
USB Device, USB Host |
|
Math Operation |
+,‐,*,/,FFT |
|
Display |
Colour TFT‐LCD，320×240 Display |
|
Multimeter Specifications |
|||
|
Maximum Resolution |
6000 |
||
|
Item |
Range |
Accuracy |
|
|
DC Voltage |
60mV ‐ 1000V |
±1%±15digit |
|
|
AC Voltage |
60mV –750V |
±1%±15digit |
|
|
DC Current |
60mV ‐10A |
±1%±5digit |
|
|
AC Current |
60mV ‐10A |
±1%±5digit |
|
|
Capacitance |
40.00nF |
±3%±10digit |
|
|
|
400.0nF‐400.0uF |
±4%±5digit |
|
|
Resistance |
600Ω ‐ 60MΩ |
±1%±5digit |
|
|
On off Test |
<50Ω |
||
|
Diode |
0V~2.0V |
||
|
Trend Port |
1.6M Points |
||
|
Recorder |
7M Points |
||
|
Measuring Mode |
Manual/Auto |
||
|
Input by input port directly |
300V CAT II |
||
|
Input by 10:1 probe |
1000V CAT III,600V CATIII |
||
|
The Max input voltage of Multimeter |
DC 1000V,AC 750V |
||
|
The float voltage between Oscilloscope BNC and ground |
1000V CAT III,600V CATIII |
||
|
The float voltage between each channel |
1000V CAT III,600V CATIII |
||
|
The float voltage between Multimeter and ground |
1000V CAT III,300V CATIII |
||
|
Security :Isolated Handheld Digital Oscilloscope should be designed according to the standard of level II and pollution degree level II, which apply to measure 1000V;or according to the standard of level III and pollution degree level II, which apply to measure 600V |
|||
|
General Features |
|
|
Display |
Colour TFT‐LCD，320×234 Display |
|
Power Supply |
With battery or apply DC adapter to get power from outside |
|
Power Source |
Built‐in rechargeable lithium battery: 7.4V 4500mAh, Battery Last 3 hours; |
|
Weight |
1.5Kg |
|
Size |
163.2mm×259.5mm×53.3mm |
|
Accessory |
Two Passive probes, Power cable, DC adapter, Multimeter Pen |
