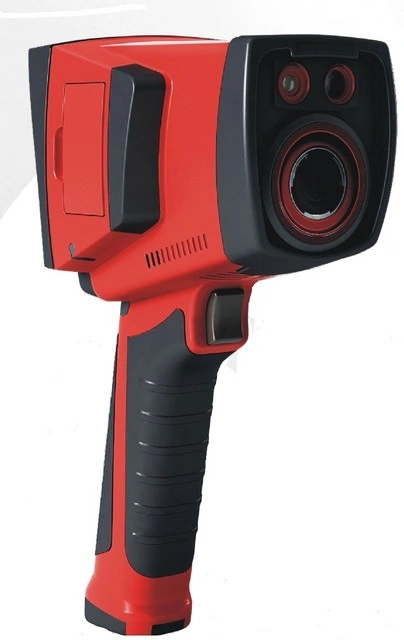

GUIDE EASIR™-0 INFRARED CAMERA
Description
Infrared Camera
Product Description
EasIR -0 is a new infrared camera guide infrared, breaking the infrared world with highest performance and low price. Designed for tough work environments and entry-level users, EasIR -0 is far more robust and shock-resistant for any tough working environment. One-hand easy operation allows users to use the camera without training. EasIR, easy IR camera for your work.
Applications
• Predictive and preventative maintenance
• Electrical inspection
• building diagnostics
• Technical diagnostics
• Veterinarian helper
Specifications
|
Thermal |
|
|
Detector type |
Un-cooled FPA Microbolometer (160 x 120 pixels, 25µm) |
|
Thermal Sensitivity |
100mk@30°C |
|
Spectral Range |
8 to 14µm |
|
Field of View/ Focus |
20.6° x 15.5° / 11mm |
|
Focus |
Motorised |
|
Image Presentation |
|
|
Display |
3.6" TFT LCD with high resolution |
|
Measurement |
|
|
Temperature Measurement |
0°C to 250°C |
|
Accuracy |
±2°C or ±2% of reading |
|
Emissivity Correction |
Variable from 0.01 to 1.00 (in 0.01 increment) |
|
Measurement Features |
Automatic correction based on distance, relative humidity, atmospheric transmission and external optics |
|
Optics Transmission Correction |
Auto, based on signals from sensors |
|
Image Storage |
|
|
Type |
Removable 2GB SD card |
|
File Format |
JPG with analysis |
|
Power System |
|
|
Battery Type |
AA rechargeable battery, field-replacement, AA Alkaline battery also usable |
|
Charging System |
In battery charger |
|
Battery Operating Time |
Over 2 hours continuous operation |
|
External Power Operation |
AC adapter 110/220 VAC, 50/60Hz |
|
Environmental Specification |
|
|
Operating Temperature |
0°C to 50°C |
|
Storage Temperature |
-10°C to 60°C |
|
Humidity |
Operating and storing 10% to 95%, non-condensing |
|
Encapsulation |
IP43 |
|
Shock |
Operational 25G, IEC 68-2-29 |
|
Vibration |
Operational 2G, IEC 68-2-6 |
|
Interfaces |
|
|
USB 2.0 |
Real-time image transfer to PC |
|
Physical Characteristics |
|
|
Weight |
0.73KG (including battery) |
|
Size |
111mm x 124mm x 240mm |
|
Colours |
Yellow 7 grey interlaced or red & dark interacted alternative |

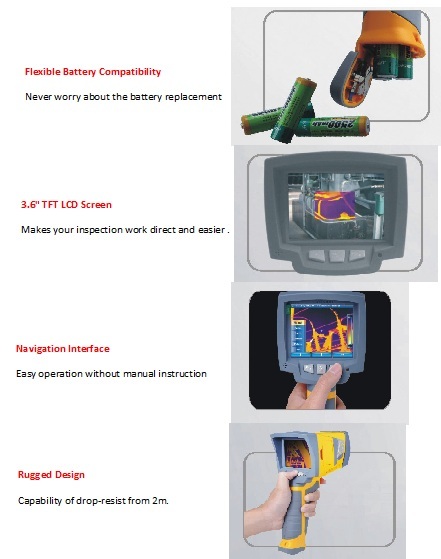

Features and Benefits
