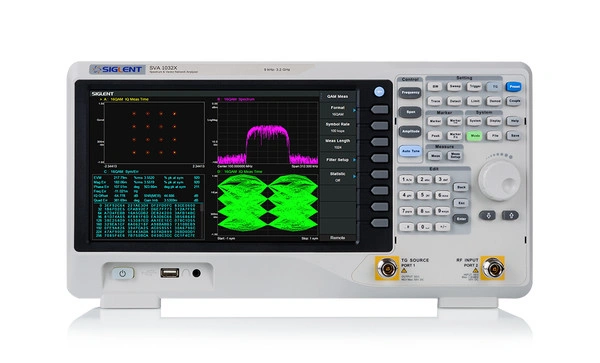

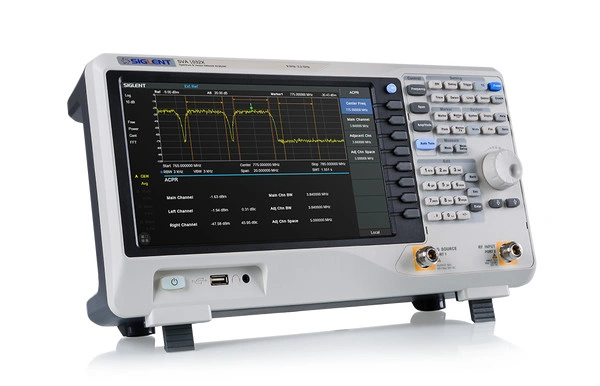

Siglent SVA1015X 1.5GHz Spectrum & Vector Network Analyzer
Description
Product Description
Siglent SVA1015X 9 kHz - 1.5 GHz with VNA and tracking generator included is a powerful and flexible tool for RF signal and network analysis. With a frequency range of 1.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation.
Key Features:
- Tracking Generator Standard
- Distance To Fault (Opt.)
- Vector Network Analyzer function (included after 9/23/2019)
- EMI Filter and Quasi-Peak Detector Kit (Opt.)
- Advanced Measurement Kit (Opt.)
- 10.1 lnch Multi-Touch Screen , Mouse and Keyboard supported
- Web Browser Remote Control on PC and Mobile Terminals and File Operation
| Model Overview | SVA1015X VNA | SVA1032X VNA | SSA3021X | SSA3032X |
|---|---|---|---|---|
| Max. Bandwidth | 1.5 GHz | 3.2 GHz | 2.1 GHz | 3.2 GHz |
| Resolution bandwidth (RBW) | 1 Hz ~ 1 MHz, in 1-3-10 sequence | 1 Hz ~ 1 MHz, in 1-3-10 sequence | 1 Hz ~ 1 MHz, in 1-3-10 sequence | 1 Hz ~ 1 MHz, in 1-3-10 sequence |
| Display average noise level (DANL), min. | -156 dBm/Hz Displayed Average Noise Level | -161 dBm/Hz Displayed Average Noise Level | -161 dBm/Hz, Normalize to 1 Hz (typ.) | -161 dBm/Hz, Normalize to 1 Hz (typ.) |
| Preamplifier | YES | YES | YES | YES |
| Tracking Generator | YES | YES | YES | YES |
| Vector Network Analysis | YES | YES | NO | NO |
| Distance To Fault | Option | Option | NO | NO |
| Modulation Analysis | Option | Option | NO | NO |
| EMI Pre-compliance Test Kit | Option | Option | Option | Option |
| Advanced Measurement Kit | Option | Option | Option | Option |
| Multi-Touch Screen | YES 10.1" LCD | YES 10.1" LCD | NO Touch 10.1" LCD | NO Touch 10.1" LCD |
Accessoires Included:
1 x Siglent SVA1015X 9 kHz - 1.5 GHz with VNA and TG included
1 x Guarantee Card
1 x Power Cord
1 x USB Cable
1 x Quick Start Guide
