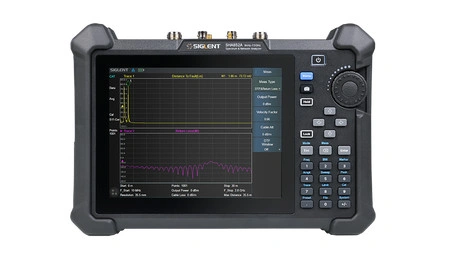

Siglent SHA851A 9 kHz~3.6 GHz handheld spectrum analyzer

Name: Siglent SHA851A 9 kHz~3.6 GHz handheld spectrum analyzer
Brand: Siglent
SKU: Siglent SHA851A 9 kHz~3.6 GHz handheld spectrum analyzer
Availability: InStock

Description

Product Description

The Siglent SHA851A handheld spectrum analyzer delivers many powerful measurements and multiple modes of operation. The spectrum analyzer with the built-in pre-amplifier and the optional, independent signal source and the fast scanning speed and high sensitivity, is ideal for broadcast monitoring, channel power scanning, interference localization, monitoring wireless power, electromagnetic compatibility, and other functions. The cable and antenna test mode with the optional DC bias voltage together with a 1-path-2-port vector network analysis function enable the instrument to measure TDR, VSWR, debug port matching, determine insertion loss , debug power amplifier and locate fault location at cables, etc.

Inputs and Outputs overview

RF input Port 2 N type female, 50 Ω nom
Source Port 1 N type female, 50 Ω nom
USB Host USBA plug, version 2.0
Ear Phone Jack 3.5 mm
USB Device USB C plug, version 2.0
LAN LAN VXI11 10/100 Base RJ 45
GPS Antenna (GPS Receiver) SMA F 3.3V, 50 Ω
Bias out
(SHA850-BIAS) SMB F 1 2V 32V 0 .1 V step
10 MHz Reference input 10 MHz, 5 to +10 dBm, BNC type female, 50 Ω nom
External trigger input 1 K Ω 5V TTL level , BNC type female

Interference analysis with directional antenna

Channel Power and ACPR measurement

Siglent SHA851A Features :

Spectrum Analyzer Frequency Range from 9 kHz up to 3.6 GHz 1 6 5 dBm /Hz Displayed Average. Noise Level (Typ 10 4 dBc/Hz.@10 k Hz Offset Phase Noise 1 GHz Typ.), 1 Hz up to 10 MHz Minimum Resolution Bandwidth (RBW) Preamplifier and independent signal source up to 3.6 GHz , GPS positioning and logging
Cable and Antenna Test Frequency Range from 100 kHz up to 3.6 GHz, Distance To Fault and Time Domain Analysis.
Vector Network Analyzer Bias out up to 32VDC
Typical working time 4 hours, 3.2 kg net weight, 8.4 lnch Multi Touch Screen , Mouse and Keyboard supported.

Remote control

Communication Interface :

LAN, USB TMC GPIB (USB GPIB adaptor
Remote Control Capability :
SCPI / Labview / IVI based on USB TMC / VXI 11 / GPIB / Socket / Telnet NI MAX Web Browser (HTML 5 Supported)

General Specification:

Structure Dimensions
310 mm × 215 mm × 78 .5 mm ( W x H x D )
Weight Net: 3 2 0 kg 7.0 lb)
Display TFT LCD, 800 × 600, 8.4 inch multi touch screen.
Storage Internal (Flash) 3 .2 GByte , external (USB storage 32GByte)
Working Environment
Source AC voltage range 100-240 V, 50/60 Hz or 100-120 V, 400 Hz;
Power consumption 20W (typ.)
Temperature Working temperature 0 °C to 5 0 °C ,
Storage temperature 20 °C to 70 °C
Humidity 0 °C to 30 °C ≤ 95% Relative humidity
30°C to 50 °C , ≤ Relative humidity
Altitude Operating: less than 3km 10000 feet)
Electromagnetic Compatibility
EN 61326-1: 2013 / Class A (The active input power of the EUT
EN 61000-3 2: 2014 is less than 75 W. According to EN 61000 3 2, no limits are necessary.)
EN 61000-3-3: 2013 Plt: 0.65 Pst: 1.00, dmax: 4.00 % dc: 3.00 %
dt Lim: 3.30 % dt>Lim: 500ms
Safety
CAN/CSA-C22.2 No. 61010 1:2012/A1:2018 11
CAN/CSA-C22.2 No. 61010 2 030:2018
UL 61010 1:2012/R:2018 11
UL 61010 2 030:2018
RoHS
2011/65/EU

Model	SHA851A	SHA852A
Frequency Range	9 kHz~3.6 GHz	9 kHz~7.5 GHz
DANL	-165 dBm/Hz
Phase Noise (1 GHz, Typ.)	-104 dBc/Hz.@10 kHz Offset
Preamplifier	Standard
Cable and Antenna Analyzer
Frequency Range	100 kHz~3.6 GHz	100 kHz~7.5 GHz
Vector Network Analyzer(opt.)
Frequency Range	100 kHz~3.6 GHz	100 kHz~7.5 GHz
Dynamic Range	114 dB
Other functions	Advanced Measurement Kit, Analog Modulation Analysis, Digital Modulation Analysis, GPS location, Independent Source, DC Bias Out
Display	TFT LCD, 800 × 600, 8.4 inch multi-touch screen
Battery life	4 Hours
