Rigol Oscilloscope Probe RP2200
Description
Product Description:

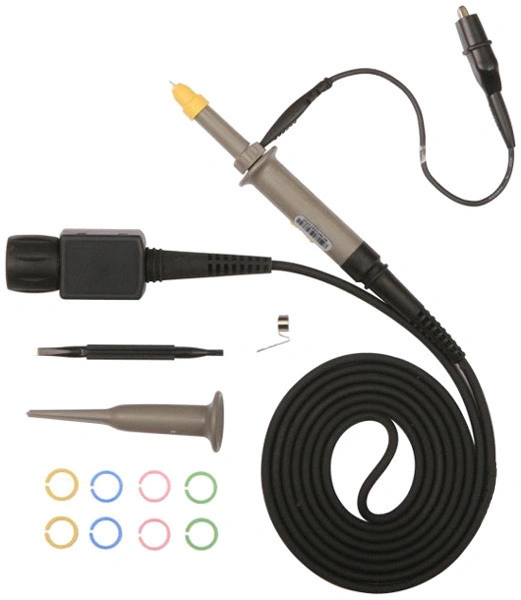

RIGOL RP2200 Passive measuring oscilloscope probe with accessories. Compatible with Rigol and Atten oscilloscopes.
Rigol RP2200 is a passive oscilloscope probe with accessories for easy measurements and probing.
Specifications:
|
|
1× |
10× |
|
Bandwidth |
7 MHz |
150 MHz |
|
Rise time |
50 ns |
2.3 ns |
|
Attenuation ratio |
switchable |
|
|
Input resistance |
1 MΩ ±2% |
10 MΩ ±2% |
|
Input capacitance |
1 pF ±20 pF |
17 MΩ ±5 pF |
|
Maximum input |
CAT II 150 V AC |
CAT II 300 V AC |
|
Compensation range |
5 pF to 29 pF |
|
|
Operating environment |
0°C to 50°C, 0 to 80% RH |
|
|
Storage environment |
−20°C to 60°C, 0 to 90% RH |
|
|
Dimensions |
140 cm |
|
|
Weight |
0.045 kg |
|
Rigol Oscilloscope Probe RP2200 Compatability:
- • Digital oscilloscope ATTEN ADS1022C
- • Digital oscilloscope ATTEN ADS1062CM
- • Digital oscilloscope ATTEN ADS1102CM
- • Digital oscilloscope ATTEN ADS1042CM
- • Digital oscilloscope ATTEN ADS1042CML
- • Digital oscilloscope ATTEN ADS1062CML
- • Digital oscilloscope ATTEN ADS1102CML
- • Digital oscilloscope RIGOL DS1062CA
- • Digital oscilloscope RIGOL DS1102CA
- • Digital oscilloscope RIGOL DS1052E
- • Digital oscilloscope RIGOL DS1102E
- • Mixed signal oscilloscope Rigol DS1052D
- • Mixed signal oscilloscope Rigol DS1102D
- • Digital oscilloscope RIGOL DS1052E
