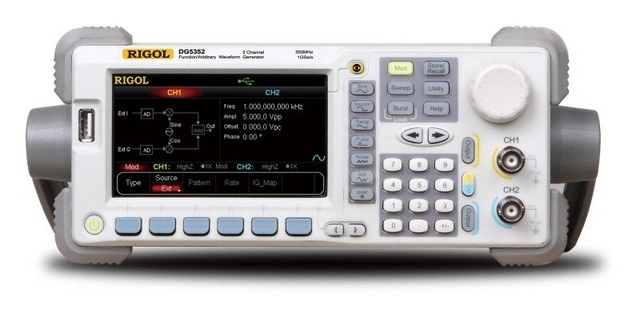

Rigol DG5351 Waveform Generator

Name: Rigol DG5351 Waveform Generator
Brand: Rigol
SKU: Rigol DG5351 Waveform Generator
Availability: InStock

Description

Rigol DG5351 Waveform Generator

Quick Overview

DG5351 is a multipurpose generator combining different capabilities including Function Generation, Arbitrary Waveform Generation, IQ Baseband Source/IQ IF Source, Frequency Hopping Source (optional) and Pattern Generation (optional). With single and true, independent, dual-channel models that provide adjustable phases between the two channels. The DG5351 adopts Direct Digital Synthesizer (DDS) technology, which providing stable, precise, low distortion signals. The user-friendly interface design and panel layout improves efficiency or utilize an interface for complete programmability.

Product Description

The Rigol DG5351 is a Function / Arbitary Waveform Generator to create high quality signals up to 350 MHz (Sine). Beside the analog output the devices include a USB-Host- and a USB-device, a RS-232, LAN and GPIB interface.

The Rigol Function-generators have a sophisticated and easy to use userinterface and offers multiple functions for all tasks. The menu navigation is very intuitional in use and all functions and parameters are easy to reach because of the graphical interface.

Model	DG5071	DG5072	DG5101	DG5102	DG5251	DG5252	DG5351	DG5352
Max. Frequency	70 MHz	70 MHz	100 MHz	100 MHz	250 MHz	250 MHz	350 MHz	350 MHz
Max. Sample rate	1 GSa/s	1 GSa/s	1 GSa/s	1 GSa/s	1 GSa/s	1 GSa/s	1 GSa/s	1 GSa/s
Resolution	1 µHz	1 µHz	1 µHz	1 µHz	1 µHz	1 µHz	1 µHz	1 µHz
Channels	1	2	1	2	1	2	1	2

Special Features:

Filesystem and USB Stick Support

The devices have a filesystem for the storage of waveforms in the internal memory or on USB sticks.

Integrated Helpsystem

The integrated helpfunction will show descriptions of single functions and step-by-step instructions for often used tasks.

Specifications:

Generator	Function / Waveform Generator Rigol DG5351
Display	4.3" TFT LCD with 16M true color
Resolution	480 × 272 Pixel
Interfaces	- USB-Host (for USB stick i.e. to save/load waveforms) - USB for a PC connection - LAN for network connection - GPIB (IEE-488, General Purpose Interface Bus)
Dimensions (W × H × D)	263 mm × 107 mm × 505 mm (10.35" × 4.21" × 19.88")
Weight	4.3 kg (9.48 lbs)
Supported operation systems	Windows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit)

Function	Function / Waveform Generator Rigol DG5351
Channels	1
Signal Output	Sine, Rectangle, Pulse, Ramp, 9 predefined arbitrary Waveforms, freely definineable arbitrary Waveforms, Noise
Vertical Resolution	14 bit
Amplitudes	5 mVpp ~ 10 Vpp (50 Ω)
DC Offset	±5 V (50 Ω)
Sample Rate	1 GSa/s
Frequency Range Sine	1 µHz - 350 MHz
Frequency Range Rectangle	1 µHz - 120 MHz
Frequency Range Pulse	1 µHz - 50 MHz
Frequency Range Ramp	1 µHz - 5 MHz
Frequency Range Arbitrary	1 µHz - 50 MHz
Frequency Range Noise	250 MHz (-3db)
Resolution	1 µHz
