Ceyear 4024A/B/C/D/E/F/G Spectrum Analyzer

Description

Product Description

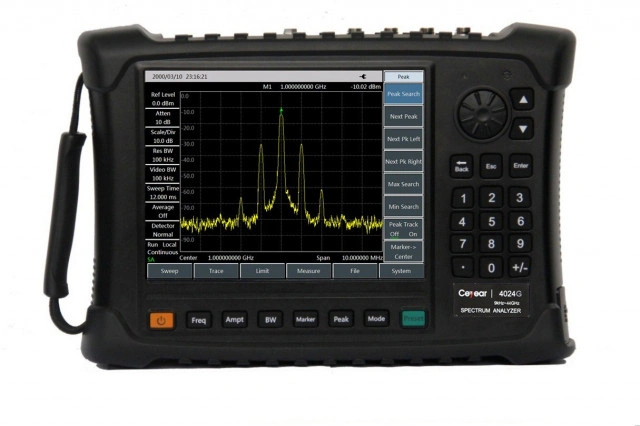

4024D/E/F/G Spectrum Analyzer possesses many advantages: a wide frequency range, high performance, high sweep speed, various functions, and easy operation. In terms of performance specifications, it has advantages of excellent displayed erage noise level, low phase noise, and high sweep speed; In terms of measurement functions, it enjoy rich measurement functions of spectrum analyzer, interference analyzer, AM/FM/PM analyzer, power meter, channel scanner etc., as well as intelligent measurement functions of channel power, occupied bandwidth, adjacent-channel power ratio, tune & listen, emission mask, and carrier-to-noise ratio etc.. 4024 deploys the integrated design of 8.4 inch LCD and capacitive touch screen, which improves the display definition and operation convenient. The series are handheld, compact and lightweight, with flexible power supply, which are very suitable for field work.

4024 can be used for signal and equipment test in the fields of aerospace, microwe & satellite communication, radio communication, radar monitoring, electronic countermeasures & reconnaissance, and precision guidance.

FUNCTIONS & FEATURES

• Wide frequency range: from 9KHz to 44GHz, 4 models
• Low displayed erage noise level: -163dBm@1Hz RBW(typical)
• Excellent phase noise performance: -106dBc/Hz@100KHz frequency offset@1GHz carrier
• High sweep speed: for 1GHz span, shortest sweep time <20ms
• Resolution bandwidth: 1Hz～10MHz
• Full-band pre-amplifier: standard configuration
• Rich measurement functions: spectrum analyzer, interference analyzer (spectrogram, RSSI), AM/FM/PM analyzer, channel scanner, high accuracy power meter etc
• Various intelligent measurement functions: field strength measurement, channel power, occupied bandwidth, adjacent-channel power ratio, tune & listen, carrier-to-noise ratio, emission mask
• Various auxiliary test interface: 10MHz reference input/output interface, GPS antenna interface, zero span IF output interface, external triggering input interface etc
• Easy & convenient user operation: 8.4 inch high definition LCD and large font display, convenient capacitive touch screen operation, combination of LCD and touch screen and various display modes, etc
• Operating temperature range: -10℃～50℃. Power supplied by battery or adapter
• Various measurement functions

Interference analyzer (spectrogram)

 AM/FM/PM demodulation

 Channel scanner

 Power meter (USB power probe)

Comprehensive intelligent measurement function

 Field strength measurement

 Channel power

Occupied bandwidth

Adjacent-channel power ratio

Emission mask

 Carrier-to-noise ratio

Limit line

 List sweep

 Multi-traces

Various auxiliary test interfaces

Easy & convenient user operation

• One-click quick measurement
• Storage and invocation of state and data
• Combination of 8.4 inch LCD and capacitive touch screen, smaller light refraction and clearer display
• Convenient capacitive touch screen operation
• Various display modes, better experience under outdoor light and night vision
• Backlit keys enables easy viewing in darkness

Outdoor mode

 Night vision mode

TYPICAL APPLICATIONS

Comprehensive performance evaluation of electronic weapon equipment

4024 series he advantages of a wide frequency range, high performance specifications, a high sweep speed, multiple test functions, and easy operation. They are handheld, compact and lightweight, which can be powered up by a built-in battery. The series can be used for the field installation & calibration, repair & maintenance of electronic weapon equipment in fields of radar, communication, electronic countermeasures & reconnaissance, and precision guidance etc.

Field test and diagnosis of transmitter and receiver

4024 series he rich measurement function modes like spectrum analyzer, interference analyzer, AM/FM/PM analyzer, power meter, channel scanner etc., as well as various intelligent measurement functions such as channel power, occupied bandwidth, adjacent-channel power ratio, carrier-to-noise ratio, field strength measurement, emission mask etc.. They can provide comprehensive spectrum analysis and diagnosis service for the field test of transmitter and receiver.

Broadband spectrum monitoring, interference recognition

Connected with external directive antenna, 4024 series can be used for electromagnetic environment detection, radio interference analysis, electromagnetic environment background assessment, spectrum monitoring and illegal channel interference signal recognition.
